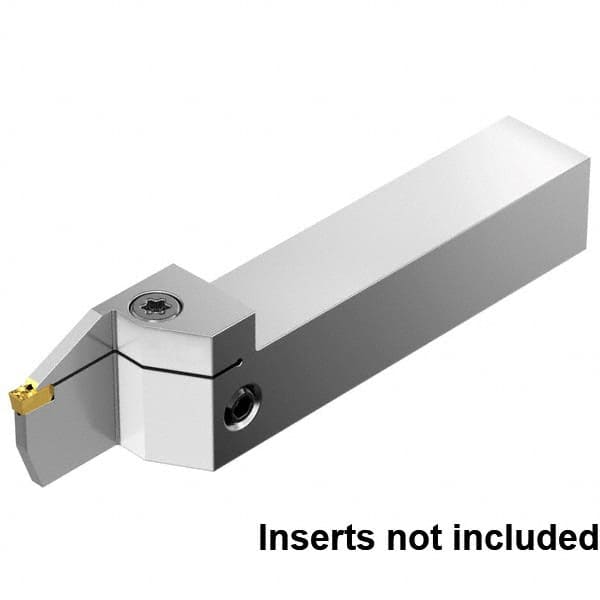

26mm Max Depth, 2mm to 2mm Width, External Left Hand Indexable Grooving/Cutoff Toolholder 6″ OAL, 1″ x 1″ Shank, Uses EG0200M02P02 Inserts, EVSM Toolholder, Through Coolant, Series EVSM
Item #: 31582299
Brand: Kennametal
Model #: 6401889
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (mm) | 26.00 |
| Hand of Holder | Left Hand |
| Maximum Groove Width (mm) | 2.00 |
| Minimum Groove Width (mm) | 2.00 |
| Toolholder Style | EVSM |
| Insert Holding Method | Clamp |
| Insert Compatibility | EG0200M02P02 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 107.10 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Series | EVSM |
| Overall Length (Decimal Inch) | 6.0000 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9620 |
| Head Height (mm) | 34.15 |
| Head Length (mm) | 45.30 |
| Manufacturers Catalog Number | EVSML160226C |
| Complete Insert Compatibility | EG0200M02P02 |
| Coolant Through | Yes |
