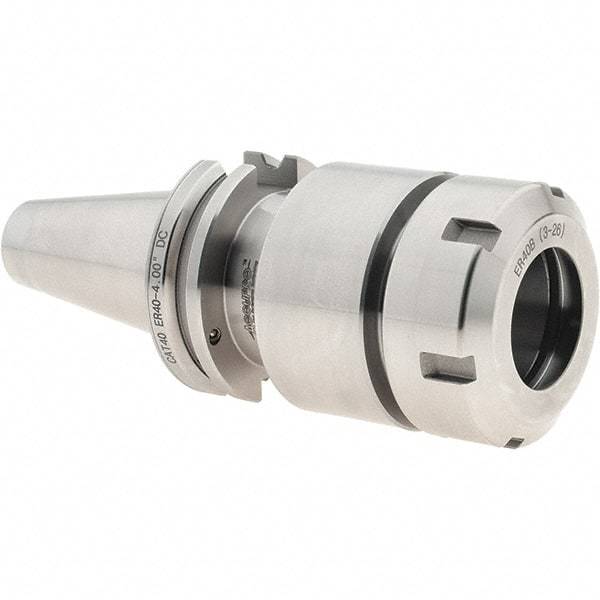

Accupro - 2.99mm to 25.98mm Capacity, 4" Projection, CAT40 Dual Contact Taper, ER40 Collet Chuck - 6-11/16" OAL
Item #: 30577449
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER40 |
| Shank Type | Dual Contact Taper |
| Taper Size | CAT40 |
| Projection (Inch) | 4 |
| Projection (Decimal Inch) | 4.0000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.1180 |
| Minimum Collet Capacity (mm) | 2.99 |
| Maximum Collet Capacity (mm) | 25.98 |
| Maximum Collet Capacity (Decimal Inch) | 1.0230 |
| Overall Length (Inch) | 6-11/16 |
| Type | ER Collet |
| Shank Length (Inch) | 2-11/16 |
| Nose Diameter (Decimal Inch) | 2.4800 |
| Maximum RPM | 30000 |
| Hex Diameter (Inch) | 2-1/2 |
| PSC Code | 5136 |
| Balanced to (RPM) | 30000 |
| TIR (Decimal Inch) | 0.0003 |
| TIR (mm) | 0.0070 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 2.5000 |
