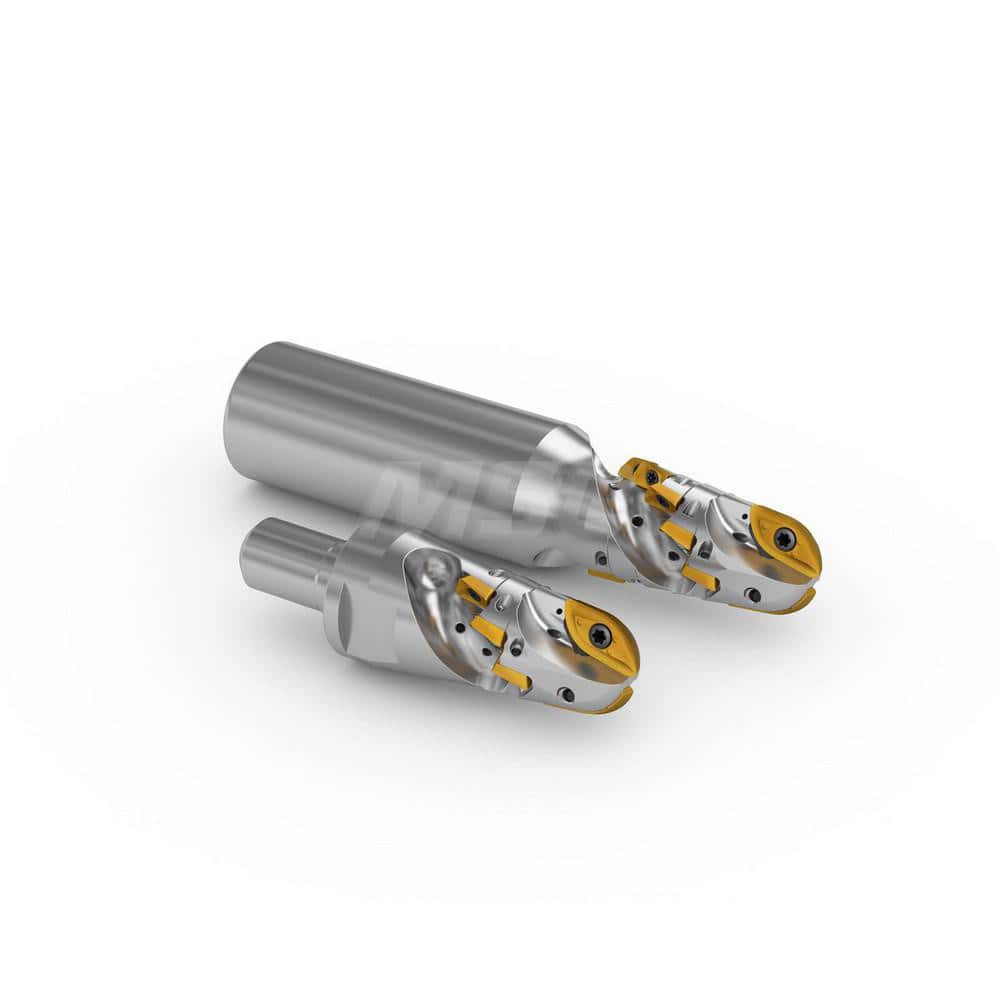

Item #: 29449576
Brand: Seco
Model #: 02735924
Product Specifications
| Milling Diameter | 15.92 mm |
| Maximum Depth Of Cut | 28.00 mm |
| Maximum Ramping Angle | 0 |
| Shank Diameter | 12.00 mm |
| Shank Type | Modular |
| Compatible Insert Style | XOEX; 218.20 |
| Compatible Insert Size Code | 060204; 080 |
| Toolholder Style | R218.24 |
| Series | R218.24 |
| Overall Length (mm) | 50.00 |
| Overall Length (Decimal Inch) | 50.00 |
| Overall Length (Inch) | 50.00 |
| Body Half Taper Angle | 43 |
| Modular Shank Size | 12.00 mm |
| Maximum Rpm | 18000.000 |
| Tool Application | Profile Milling; Semi-Finishing |
| Tool Performance | High Performance |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Normal Pressure; High Pressure |
| Tapered Neck | Yes |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 50.0 mm |
