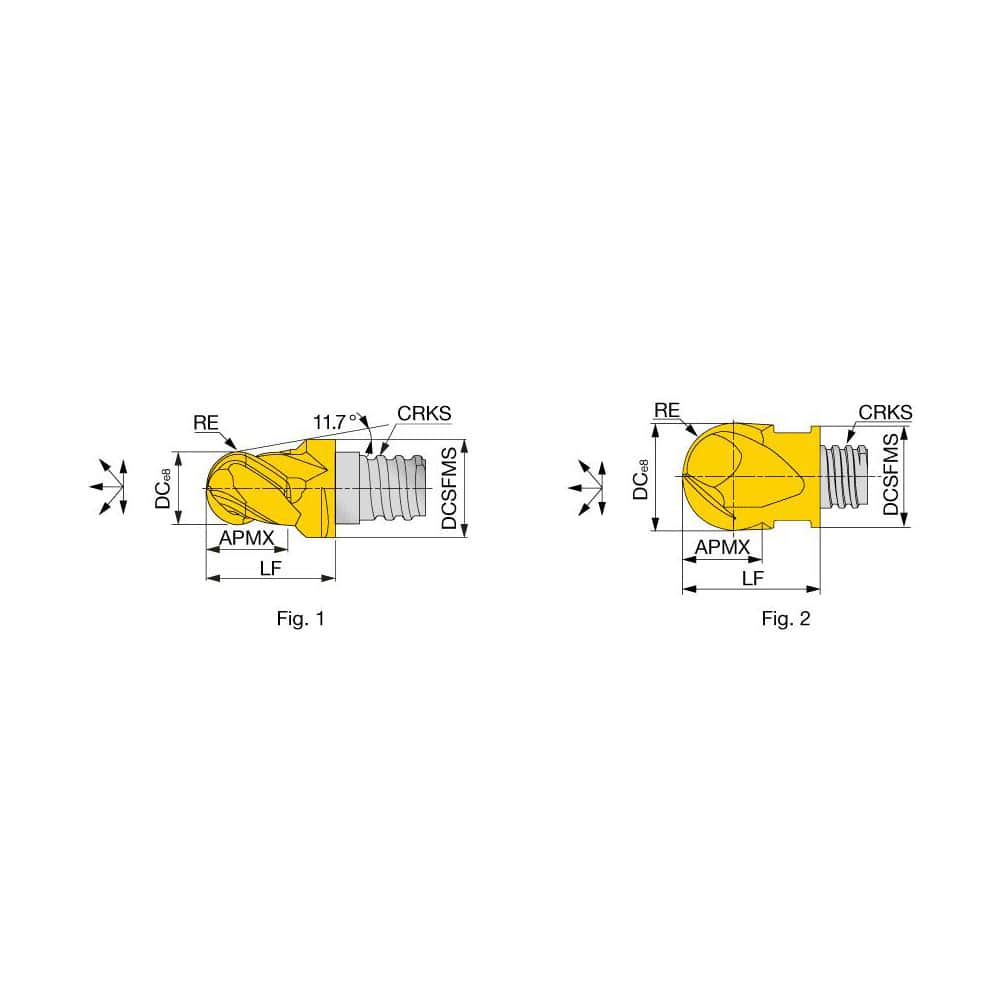

Ball End Mill Heads; Mill Diameter (mm): 10.00; Mill Diameter (Decimal Inch): 0.3937; Number of Flutes: 4; Length of Cut (mm): 7.0000; Connection Type: S06; Overall Length (mm): 12.0000; Material: Solid Carbide; Finish/Coating: TiAlN; Cutting Direction: R
Item #: 29153814
Brand: Tungaloy
Model #: 6840487
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Mill Diameter (Decimal Inch) | 0.3937 |
| Number of Flutes | 4 |
| Length of Cut (mm) | 7.0000 |
| Connection Type | S06 |
| Overall Length (mm) | 12.0000 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Angle | 30 |
| Helix Style | Medium |
| Material Grade | AH715 |
| Maximum Helix Angle | 30 |
| Minimum Helix Angle | 30 |
| Nose Radius (Decimal Inch) | 0.1961 |
| Series/List | VBD |
| Undercutting | No |
