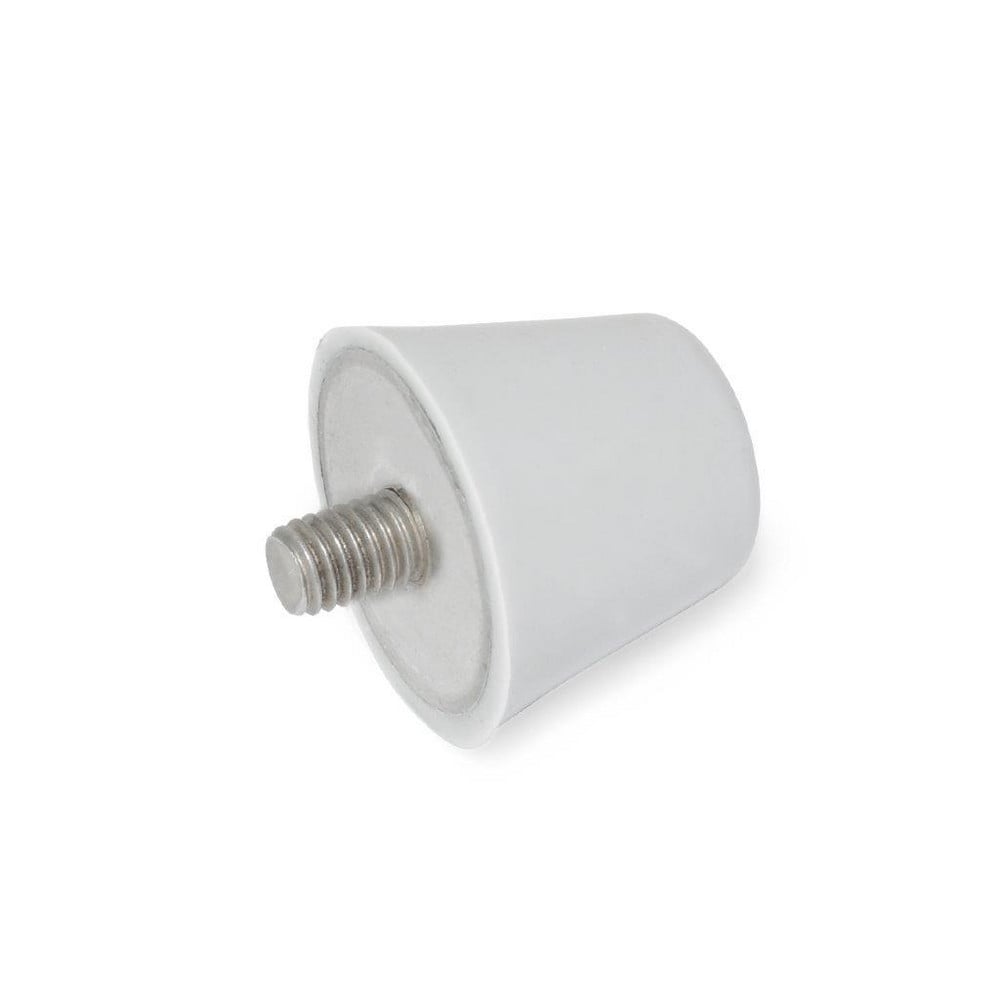

Vibration Isolators; Isolator Type: Plate/Stud; Insert Material: Stainless Steel; Isolator Material: Perbunan (NBR); Maximum Load Capacity: 460.00 N; Top Diameter: 25.00; Bottom Diameter: 17; Thread Size: 1/4-20; Overall Width: 25 mm
Item #: 71812085
Brand: J.W. Winco
Model #: 256-25-1/4X20-13-55-GR
Product Specifications
| Isolator Type | Plate/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Perbunan (NBR) |
| Maximum Load Capacity | 460.00 N |
| Top Diameter | 25.00 |
| Bottom Diameter | 17 |
| Thread Size | 1/4-20 |
| Overall Width | 25 mm |
| Overall Diameter | 25 mm |
| Thread Length (Decimal Inch) | 0.5100 |
| Deflection | 0.2000 |
| Hardness Rating | Shore 55A |
| Mount Type | Threaded Stud |
| Shape | Round |
| Thread Pitch | 1.270 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 33.5 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Perbunan (NBR) |
| Maximum Load Capacity | 460.00 N |
| Top Diameter | 25.00 |
| Bottom Diameter | 17 |
| Thread Size | 1/4-20 |
| Overall Width | 25 mm |
| Overall Diameter | 25 mm |
| Thread Length (Decimal Inch) | 0.5100 |
| Deflection | 0.2000 |
| Hardness Rating | Shore 55A |
| Mount Type | Threaded Stud |
| Shape | Round |
| Thread Pitch | 1.270 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 33.5 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 71812085 |
| Mfr Part # | 256-25-1/4X20-13-55-GR |
| Country of Origin Country of Origin is subject to change | Hungary |
