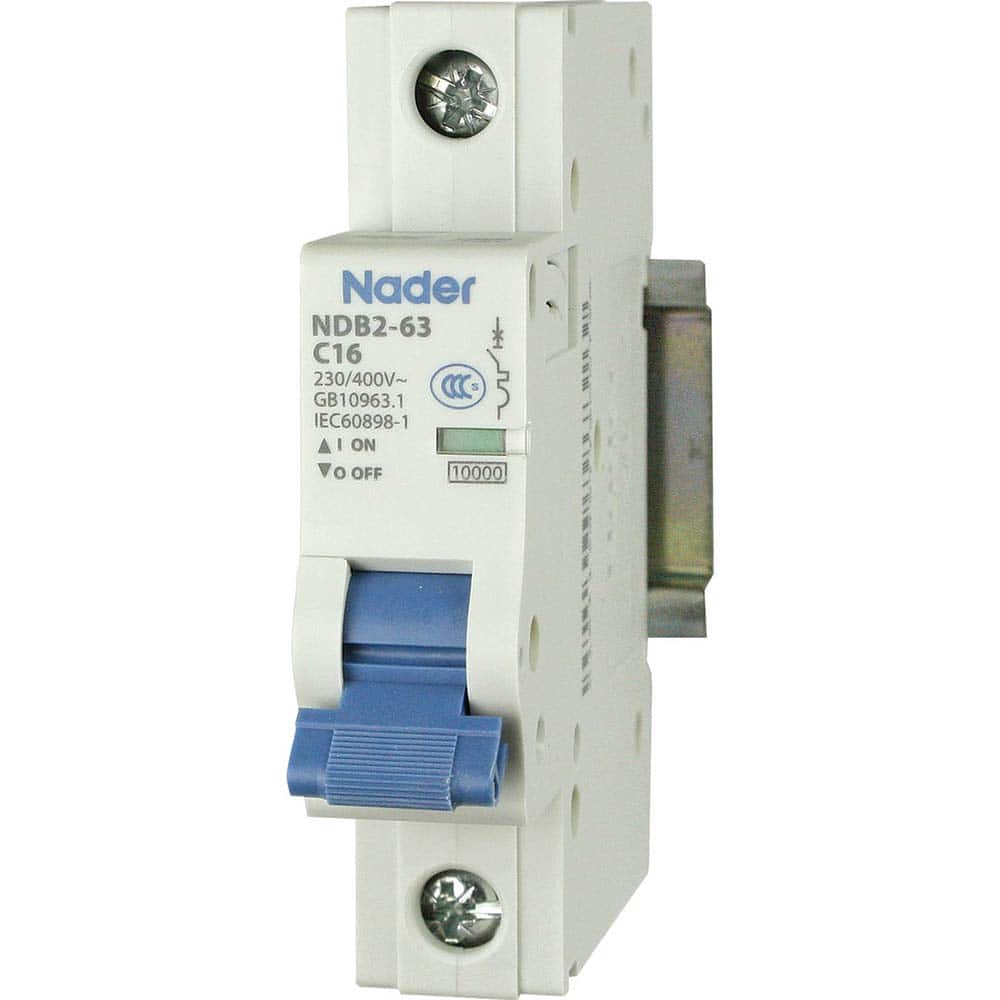

![Automation Systems Interconnect - Circuit Breakers; Circuit Breaker Type: Miniature Circuit Breaker ; Amperage: 16 ; Number of Poles: 1 ; Breaking Capacity: 7.5 kA @ 230/240 VAC; 5 kA @ 277 VAC ; Tripping Mechanism: Thermal-Magnetic ; Terminal Connection - Exact Industrial Supply](http://exactindustrialsupply.com/cdn/shop/products/2874319-21_1024x1024.jpg?v=1639668112)
Automation Systems Interconnect - Circuit Breakers; Circuit Breaker Type: Miniature Circuit Breaker ; Amperage: 16 ; Number of Poles: 1 ; Breaking Capacity: 7.5 kA @ 230/240 VAC; 5 kA @ 277 VAC ; Tripping Mechanism: Thermal-Magnetic ; Terminal Connection
Item #: 28743193
Brand: Automation Systems Interconnect
Model #: NDB2-63C16-1
Product Specifications
Circuit Breakers; Circuit Breaker Type: Miniature Circuit Breaker ; Amperage: 16 ; Number of Poles: 1 ; Breaking Capacity: 7.5 kA @ 230/240 VAC; 5 kA @ 277 VAC ; Tripping Mechanism: Thermal-Magnetic ; Terminal Connection Type: Screw
Circuit Breaker Type | Miniature Circuit Breaker |
Amperage | 16 |
Number of Poles | 1 |
Breaking Capacity | 7.5 kA @ 230/240 VAC; 5 kA @ 277 VAC |
Tripping Mechanism | Thermal-Magnetic |
Terminal Connection Type | Screw |
Mounting Type | DIN Rail |
Voltage | 240 VAC |
Wire Size (AWG) | 18-2 |
Durability | 20000 Cycles |
Maximum Operating Temperature (F) | 158 |
Minimum Operating Temperature (F) | -40 |
Overall Depth (Decimal Inch) | 3.1 |
Overall Depth (mm) | 79 |
Overall Depth (Inch) | 3.1 |
Overall Height (mm) | 81.5 |
Overall Height (Inch) | 3.2 |
Overall Height (Decimal Inch) | 3.2 |
Overall Length (mm) | 79 |
Overall Length (Inch) | 3.1 |
Overall Length (Decimal Inch) | 3.1 |
Overall Width (mm) | 17.6 |
Overall Width (Inch) | .69 |
Overall Width (Decimal Inch) | .69 |
Standards Met | UL 1077 |
Reset Actuator Type | Toggle Switch |
