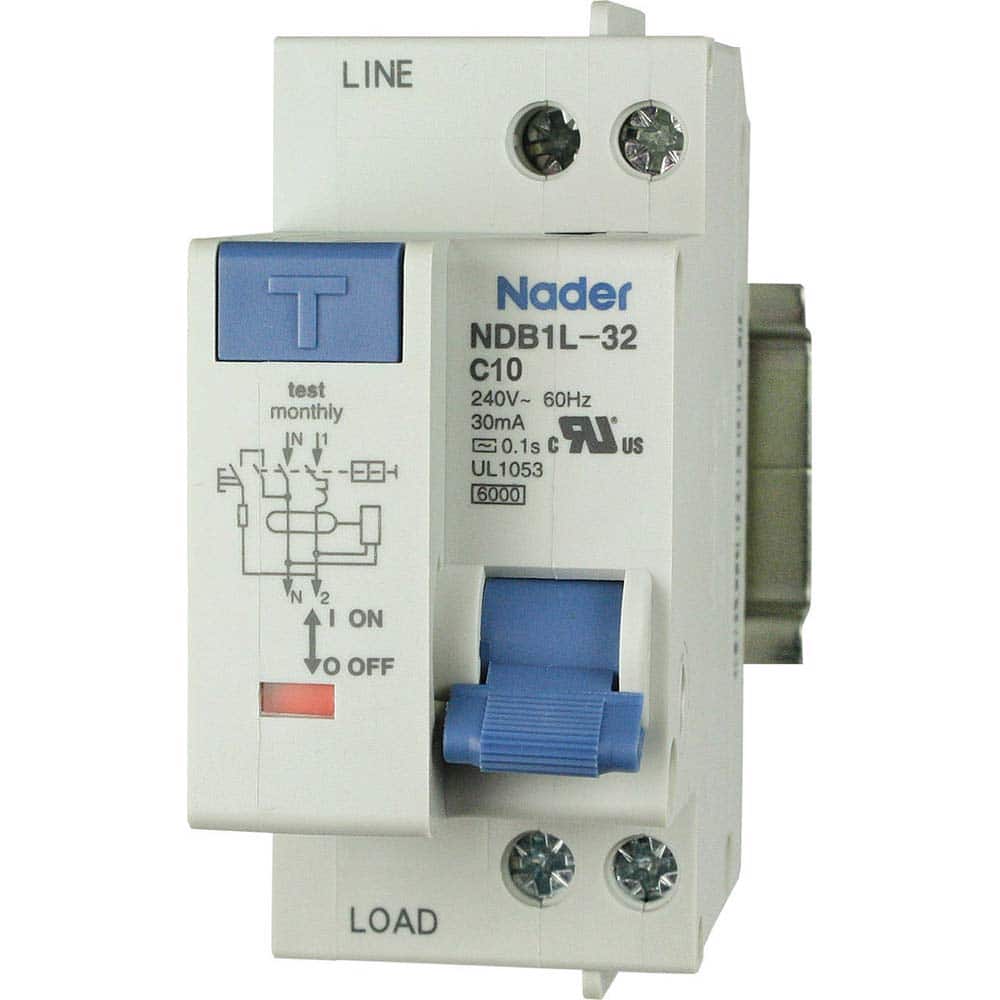

Automation Systems Interconnect - Circuit Breakers; Circuit Breaker Type: Ground Fault Circuit Breaker ; Amperage: 10 ; Number of Poles: 1 ; Breaking Capacity: 4.5kA @230/240VAC ; Tripping Mechanism: Thermal-Magnetic ; Terminal Connection Type: Screw
Item #: 28743185
Brand: Automation Systems Interconnect
Model #: NDB1L32C10120V
Product Specifications
Circuit Breakers; Circuit Breaker Type: Ground Fault Circuit Breaker ; Amperage: 10 ; Number of Poles: 1 ; Breaking Capacity: 4.5kA @230/240VAC ; Tripping Mechanism: Thermal-Magnetic ; Terminal Connection Type: Screw
| Circuit Breaker Type | Ground Fault Circuit Breaker |
| Amperage | 10 |
| Number of Poles | 1 |
| Breaking Capacity | 4.5kA @230/240VAC |
| Tripping Mechanism | Thermal-Magnetic |
| Terminal Connection Type | Screw |
| Mounting Type | DIN Rail |
| Voltage | 120VAC |
| Wire Size (AWG) | 18-8 |
| Durability | 10000 Cycles |
| Maximum Operating Temperature (F) | 131 |
| Minimum Operating Temperature (F) | -13 |
| Overall Depth (Decimal Inch) | 2.7 |
| Overall Depth (mm) | 69 |
| Overall Depth (Inch) | 2.7 |
| Overall Height (mm) | 78 |
| Overall Height (Inch) | 3.07 |
| Overall Height (Decimal Inch) | 3.07 |
| Overall Length (mm) | 69 |
| Overall Length (Inch) | 2.7 |
| Overall Length (Decimal Inch) | 2.7 |
| Overall Width (mm) | 36 |
| Overall Width (Inch) | 1.4 |
| Overall Width (Decimal Inch) | 1.4 |
| Standards Met | UL 1053 Recognized |
| Reset Actuator Type | Toggle Switch |
