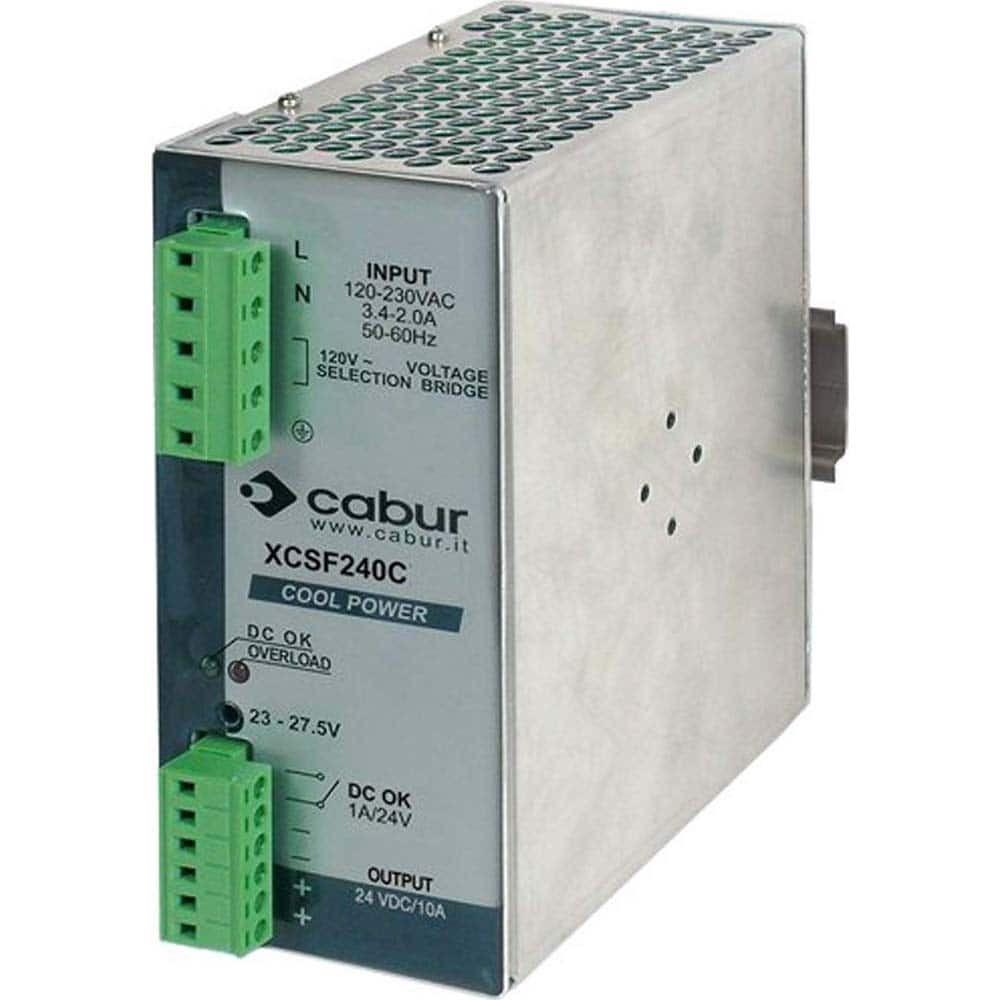

Automation Systems Interconnect - Power Supplies; Mounting Type: DIN Rail ; Output Wattage: 240 ; Maximum Input Voltage: 264 VAC ; Minimum Input Voltage: 90 VAC ; Number of Outputs: 1 ; Output Voltage: 24 VDC
Item #: 28743078
Brand: Automation Systems Interconnect
Model #: XCSF240C
Product Specifications
Power Supplies; Mounting Type: DIN Rail ; Output Wattage: 240 ; Maximum Input Voltage: 264 VAC ; Minimum Input Voltage: 90 VAC ; Number of Outputs: 1 ; Output Voltage: 24 VDC
| Mounting Type | DIN Rail |
| Output Wattage | 240 |
| Maximum Input Voltage | 264 VAC |
| Minimum Input Voltage | 90 VAC |
| Number of Outputs | 1 |
| Output Voltage | 24 VDC |
| Output Amperage | 10 |
| Connection Type | Screw On |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | -4 |
| Ingress Protection Rating | IP20 |
| Status Indicator | Green LED |
| Overall Height (mm) | 135 |
| Overall Height (Inch) | 5.31 |
| Overall Height (Decimal Inch) | 5.31 |
| Overall Width (mm) | 63.5 |
| Overall Width (Inch) | 2.5 |
| Overall Width (Decimal Inch) | 2.5 |
| Overall Depth (mm) | 136 |
| Overall Depth (Inch) | 5.35 |
| Overall Depth (Decimal Inch) | 5.35 |
