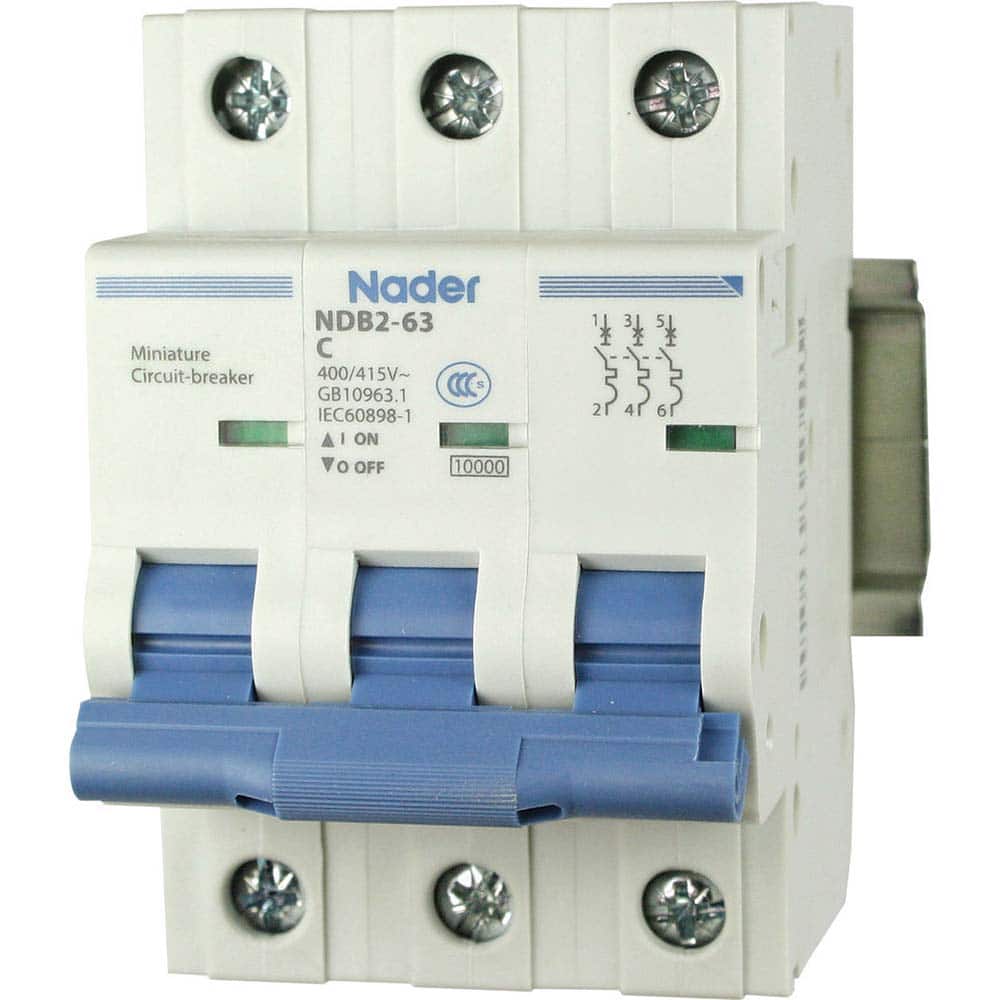

Automation Systems Interconnect - Circuit Breakers; Circuit Breaker Type: Miniature Circuit Breaker ; Amperage: 32 ; Number of Poles: 3 ; Breaking Capacity: 10 kA @ 400/415 VAC; 7.5kA @ 480VAC ; Tripping Mechanism: Thermal-Magnetic ; Terminal Connection
Item #: 28742948
Brand: Automation Systems Interconnect
Model #: NDB2-63C32-3
Product Specifications
Circuit Breakers; Circuit Breaker Type: Miniature Circuit Breaker ; Amperage: 32 ; Number of Poles: 3 ; Breaking Capacity: 10 kA @ 400/415 VAC; 7.5kA @ 480VAC ; Tripping Mechanism: Thermal-Magnetic ; Terminal Connection Type: Screw
| Circuit Breaker Type | Miniature Circuit Breaker |
| Amperage | 32 |
| Number of Poles | 3 |
| Breaking Capacity | 10 kA @ 400/415 VAC; 7.5kA @ 480VAC |
| Tripping Mechanism | Thermal-Magnetic |
| Terminal Connection Type | Screw |
| Mounting Type | DIN Rail |
| Voltage | 480 VAC |
| Wire Size (AWG) | 18-2 |
| Durability | 20000 Cycles |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -40 |
| Overall Depth (Decimal Inch) | 3.1 |
| Overall Depth (mm) | 79 |
| Overall Depth (Inch) | 3.1 |
| Overall Height (mm) | 81.5 |
| Overall Height (Inch) | 3.2 |
| Overall Height (Decimal Inch) | 3.2 |
| Overall Length (mm) | 79 |
| Overall Length (Inch) | 3.1 |
| Overall Length (Decimal Inch) | 3.1 |
| Overall Width (mm) | 52.8 |
| Overall Width (Inch) | 2.07 |
| Overall Width (Decimal Inch) | 2.07 |
| Standards Met | UL 1077 |
| Reset Actuator Type | Toggle Switch |
