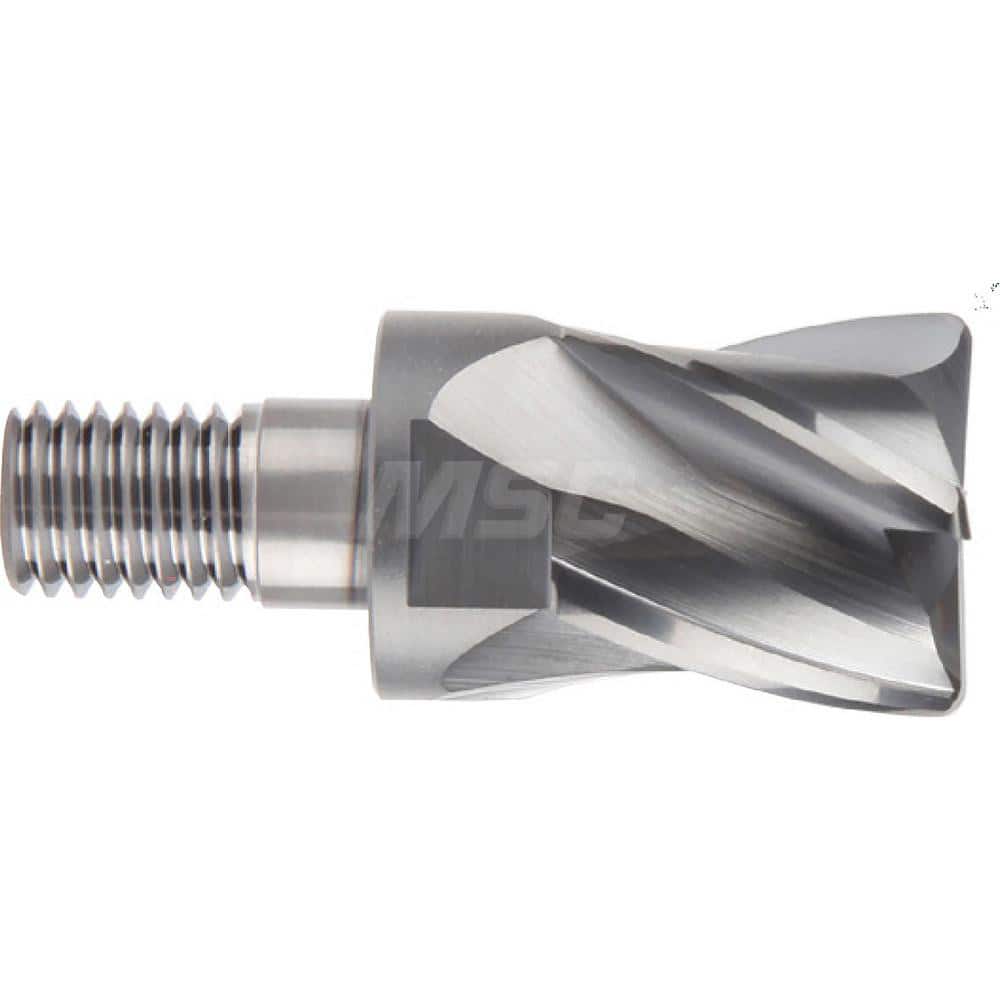

YG-1 - Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (Inch): 5/8 ; Mill Diameter (Decimal Inch): 0.6250 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0200 ; Number of Flutes: 4 ; Material: Carbide
Item #: 28653764
Brand: YG-1
Model #: XGMF20040020
Product Specifications
Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (Inch): 5/8 ; Mill Diameter (Decimal Inch): 0.6250 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0200 ; Number of Flutes: 4 ; Material: Carbide
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0200 |
| Number of Flutes | 4 |
| Material | Carbide |
| Finish/Coating | Y-Coating |
| Length of Cut (Inch) | 5/8 |
| Connection Type | M8 |
| Overall Length (mm) | 43.0000 |
| Flute Type | Helical |
| Series/List | XGMF20 |
| Centercutting | Center Cutting |
| Helix Angle | 27; 30 |
| Cutting Direction | Right |
| Flute Direction | Right |
