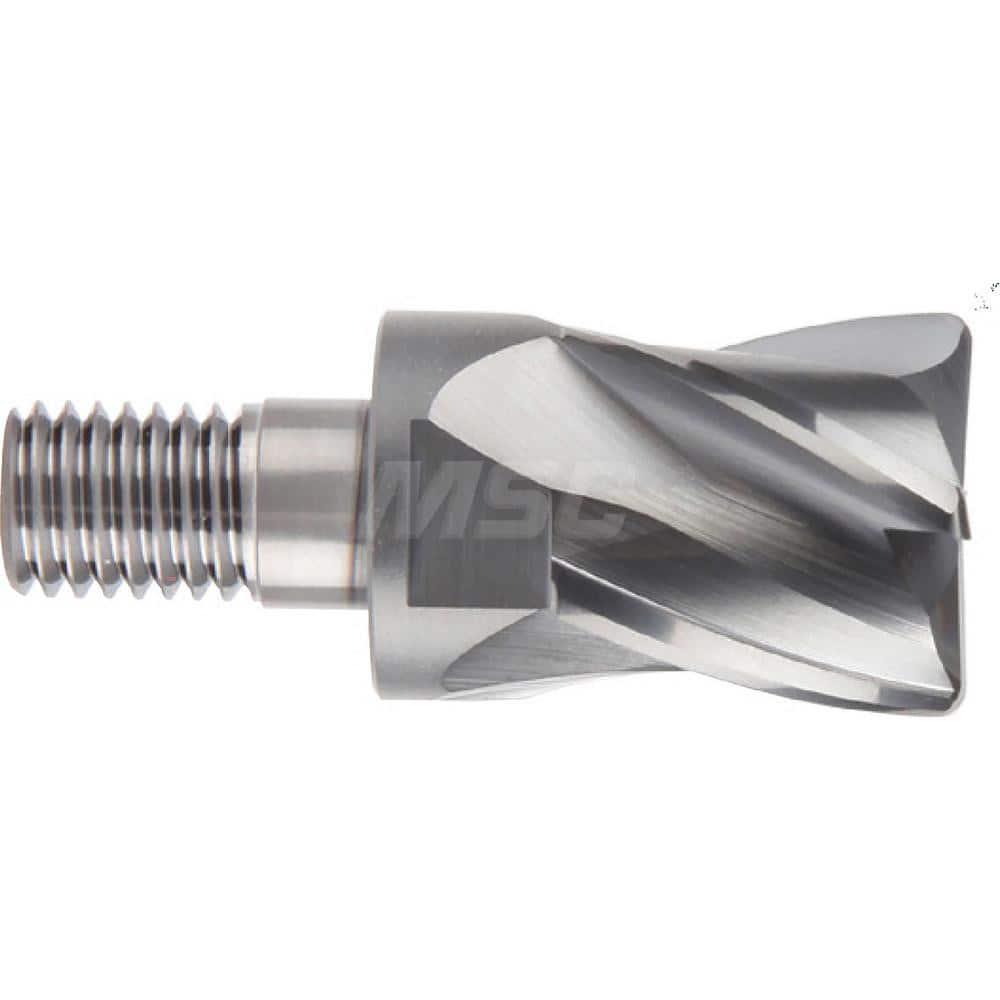

YG-1 - Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (Inch): 3/4 ; Mill Diameter (Decimal Inch): 0.7500 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0800 ; Number of Flutes: 4 ; Material: Carbide - Exact Industrial Supply

YG-1 - Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (Inch): 3/4 ; Mill Diameter (Decimal Inch): 0.7500 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0800 ; Number of Flutes: 4 ; Material: Carbide


Item #: 28653145
Brand: YG-1
Model #: XGMF20048080

Product Specifications

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (Inch): 3/4 ; Mill Diameter (Decimal Inch): 0.7500 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0800 ; Number of Flutes: 4 ; Material: Carbide
Mill Diameter (Inch) 3/4
Mill Diameter (Decimal Inch) 0.7500
End Type Corner Radius
Corner Radius (Decimal Inch) 0.0800
Number of Flutes 4
Material Carbide
Finish/Coating Y-Coating
Length of Cut (Inch) 3/4
Connection Type M10
Overall Length (mm) 48.0000
Flute Type Helical
Series/List XGMF20
Centercutting Center Cutting
Helix Angle 27; 30
Cutting Direction Right
Flute Direction Right
$155.39
