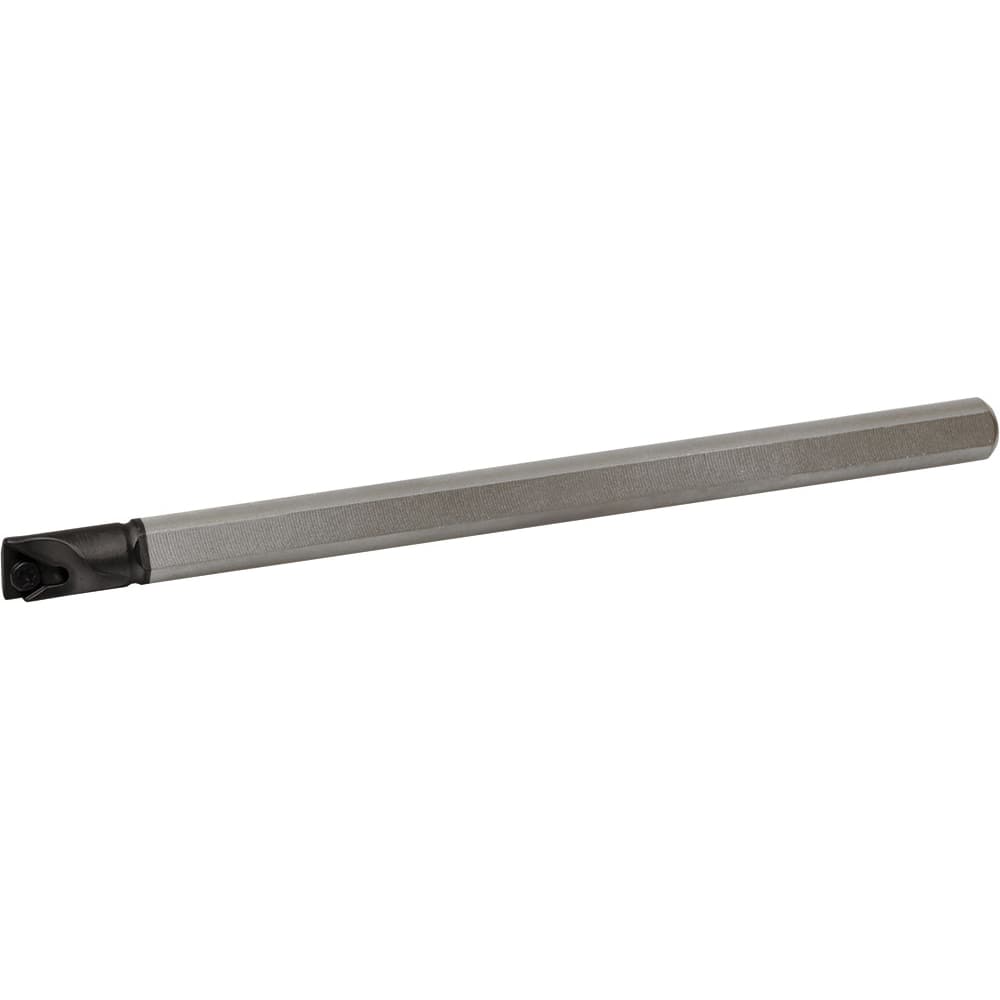

8mm Min Bore, 10mm Max Depth, Right Hand C...STLB Indexable Boring Bar 110mm OAL, 6mm Shank Diam, 95° Lead Angle, Uses TBGT121 ™, TBMT121 ™, TBGW121 ™, TBMT121 ™, C...STLB Inserts
Item #: 28485449
Brand: Kyocera
Model #: THC14557
Product Specifications
Minimum Bore Diameter (mm) | 8.00 |
Maximum Bore Depth (mm) | 10.00 |
Toolholder Style | C...STLB |
Tool Material | Steel; Solid Carbide |
Insert Compatibility | TBMT121?; TBGW121?; TBGT121? |
Shank Diameter (mm) | 6.00 |
Hand of Holder | Right Hand |
Overall Length (mm) | 110.00 |
Insert Holding Method | Screw |
Rake | Positive |
Series | DYNB |
Insert Inscribed Circle (Inch) | 5/32 |
Multi-use Tool | Yes |
Center to Cutting Edge (mm) | 3.80 |
Multi-Use Application | Internal Facing; Boring |
Number of Inserts Used on Toolholder | 1 |
Insert Thickness (Inch) | 1/16 |
Manufacturers Catalog Number | C06JSTLBR0608AN |
Radial Rake | -12 |
Coolant Through | No |
