![22mm Min Bore, 32mm Max Depth, Right Hand E...STLP Indexable Boring Bar 125mm OAL, 20mm Shank Diam, 95° Lead Angle, Uses TPMX22 ™, TPMT22 ™, TPGH22 ™, TPET22 ™, TPGB22..., TPMH22 ™, E...STLP Inserts, Through Coolant](http://exactindustrialsupply.com/cdn/shop/products/4819783-21_d0e95286-6d89-479e-8800-6f4452491af8_1024x1024.jpg?v=1675217567)

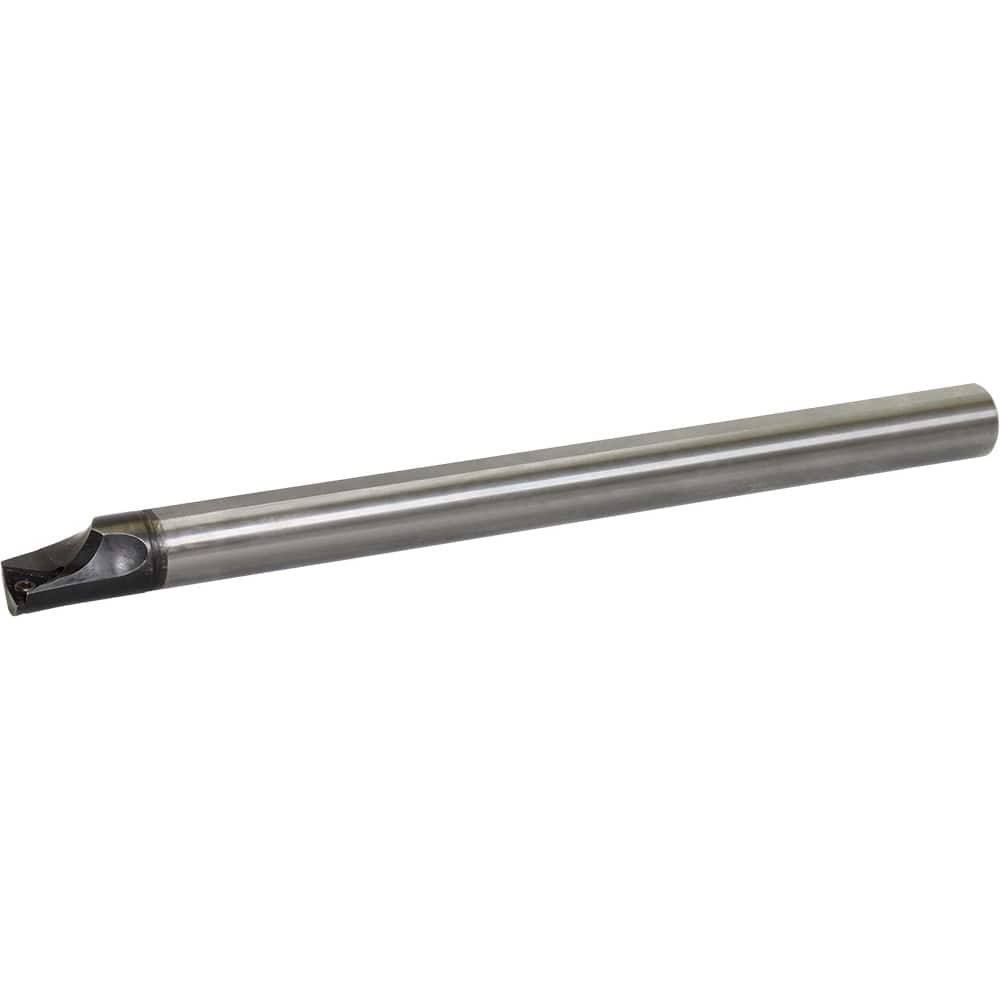

22mm Min Bore, 32mm Max Depth, Right Hand E...STLP Indexable Boring Bar 125mm OAL, 20mm Shank Diam, 95° Lead Angle, Uses TPMX22 ™, TPMT22 ™, TPGH22 ™, TPET22 ™, TPGB22..., TPMH22 ™, E...STLP Inserts, Through Coolant
Item #: 28485050
Brand: Kyocera
Model #: THC13764
Product Specifications
Minimum Bore Diameter (mm) | 22.00 |
Maximum Bore Depth (mm) | 32.00 |
Toolholder Style | E...STLP |
Tool Material | Steel; Solid Carbide |
Insert Compatibility | TPMT22?; TPGH22?; TPMH22?; TPGB22...; TPET22?; TPMX22? |
Shank Diameter (mm) | 20.00 |
Hand of Holder | Right Hand |
Overall Length (mm) | 125.00 |
Insert Holding Method | Screw |
Rake | Positive |
Series | DYNB |
Insert Inscribed Circle (Inch) | 1/4 |
Multi-use Tool | Yes |
Center to Cutting Edge (mm) | 11.20 |
Multi-Use Application | Internal Facing; Boring |
Number of Inserts Used on Toolholder | 1 |
Insert Thickness (Inch) | 1/8 |
Coolant Hole Diameter (mm) | 6.00 |
Manufacturers Catalog Number | E20SSTLPR1122A12 |
Radial Rake | -2 |
Coolant Through | Yes |
