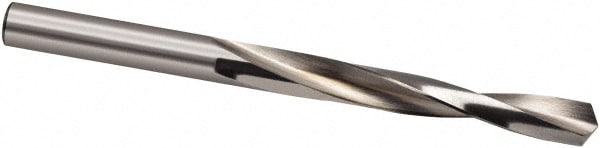

Jobber Drill: 7/16" Dia, 118 deg Point, High Speed Steel
Item #: 51646834
Brand: Guhring
Model #: 9002060111100
Product Specifications
| Drill Bit Size (Inch) | 7/16 |
| Drill Bit Size (Decimal Inch) | 0.4375 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Slow Spiral |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4374 |
| Overall Length (mm) | 142.00 |
| Overall Length (Decimal Inch) | 5.5906 |
| Spiral Type | Slow |
| Flute Length (mm) | 94.00 |
| Flute Length (Decimal Inch) | 3.7008 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 11.11 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
