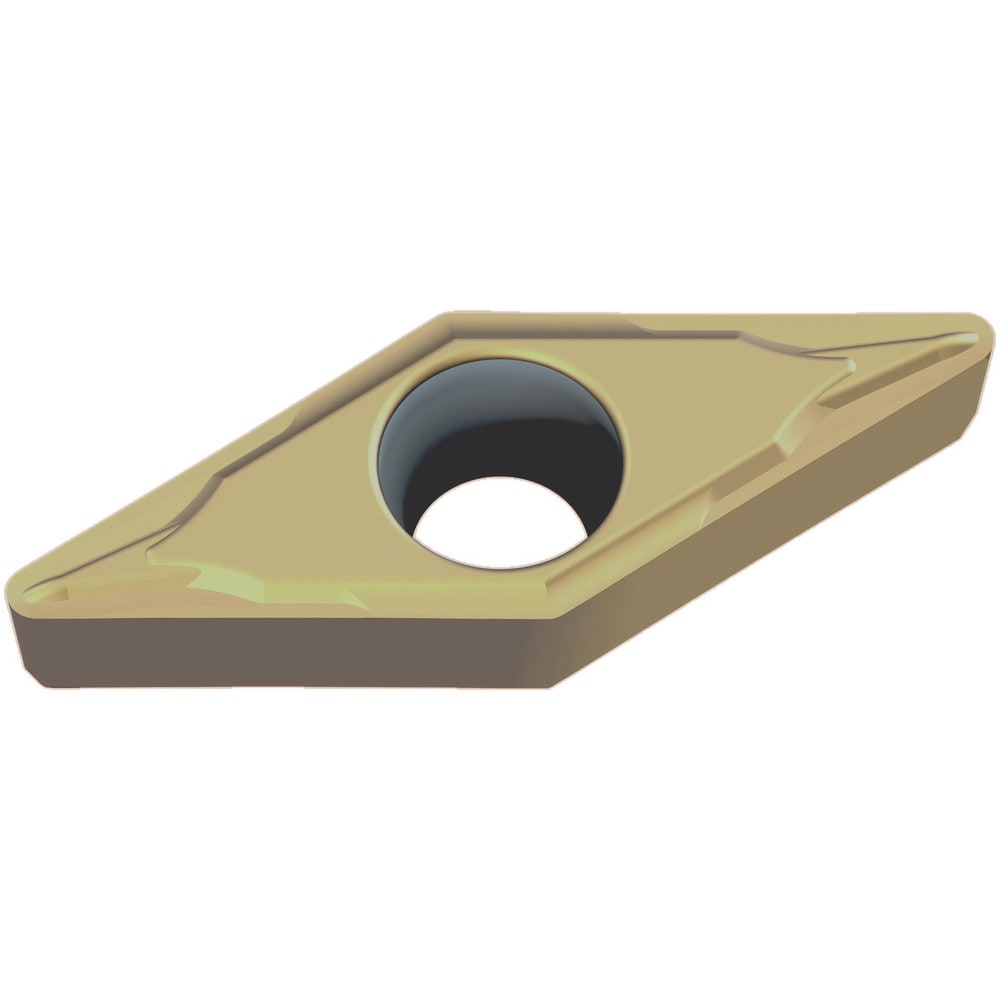

Turning Insert: VCMT1.51.51FV MP3025, Cermet
Item #: 07402290
Brand: Mitsubishi
Model #: 616411
Product Specifications
| ANSI Insert Code | VCMT1.51.51 |
| ISO Insert Code | VCMT080204 |
| Relief Angle | 7 |
| Insert Style | VCMT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 35 |
| Manufacturer Grade | MP3025 |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Inscribed Circle (Decimal Inch) | 0.1875 |
| Inscribed Circle (Inch) | 3/16 |
| Inscribed Circle (mm) | 4.76 |
| Insert Material | Cermet |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Clearance Code | C |
| Tolerance Code | M |
| Primary Workpiece Material Code | P |
| Chip Breaker | FV |
| ANSI Size Code | 1.51.51 |
| ISO Size Code | 080204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1.5 |
