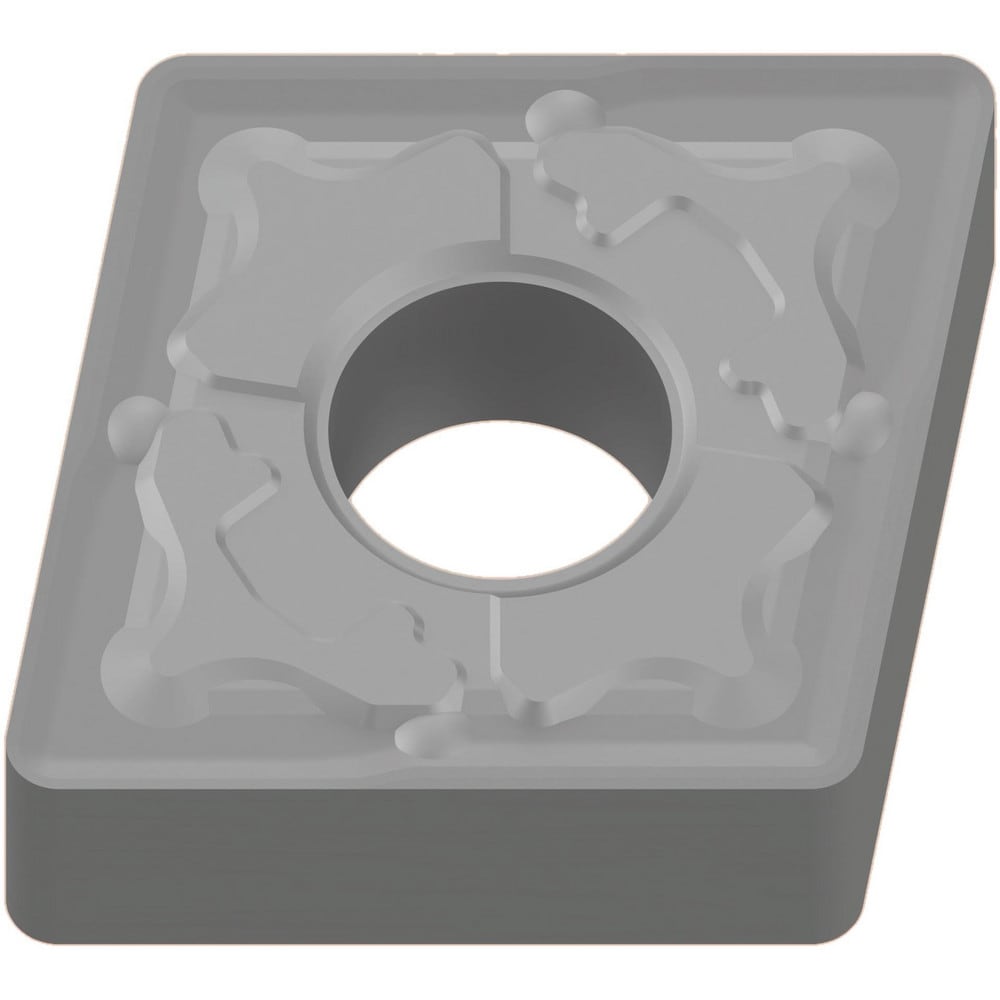

Turning Insert: CNMG643RS MT9015, Carbide

Turning Insert: CNMG643RS MT9015, Carbide


Item #: 06480974
Brand: Mitsubishi
Model #: 814768

Product Specifications

ANSI Insert Code CNMG643
ISO Insert Code CNMG190612
Relief Angle 0
Insert Style CNMG
Corner Radius (mm) 1.20
Corner Radius (Inch) 3/64
Corner Radius (Decimal Inch) 0.0469
Included Angle 80
Manufacturer Grade MT9015
Coating/Finish Bright/Uncoated
Insert Hand Neutral
Insert Thickness (Inch) 1/4
Insert Thickness 6.35
Insert Thickness (Decimal Inch) 0.2500
Inscribed Circle (Decimal Inch) 0.7500
Inscribed Circle (Inch) 3/4
Inscribed Circle (mm) 19.05
Insert Material Carbide
Insert Shape C - Diamond (Rhombic) 80-Deg
Chip Breaker Operation Medium Machining; Roughing
Grade Characteristics Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance Negative
Number Of Cutting Edges 4
Insert Shape Code C
Clearance Code N
Tolerance Code M
Primary Workpiece Material Code S
Chip Breaker RS
ANSI Size Code 643
ISO Size Code 190612
UNSPSC Code 23242105
Insert Size Code 6
$23.97
