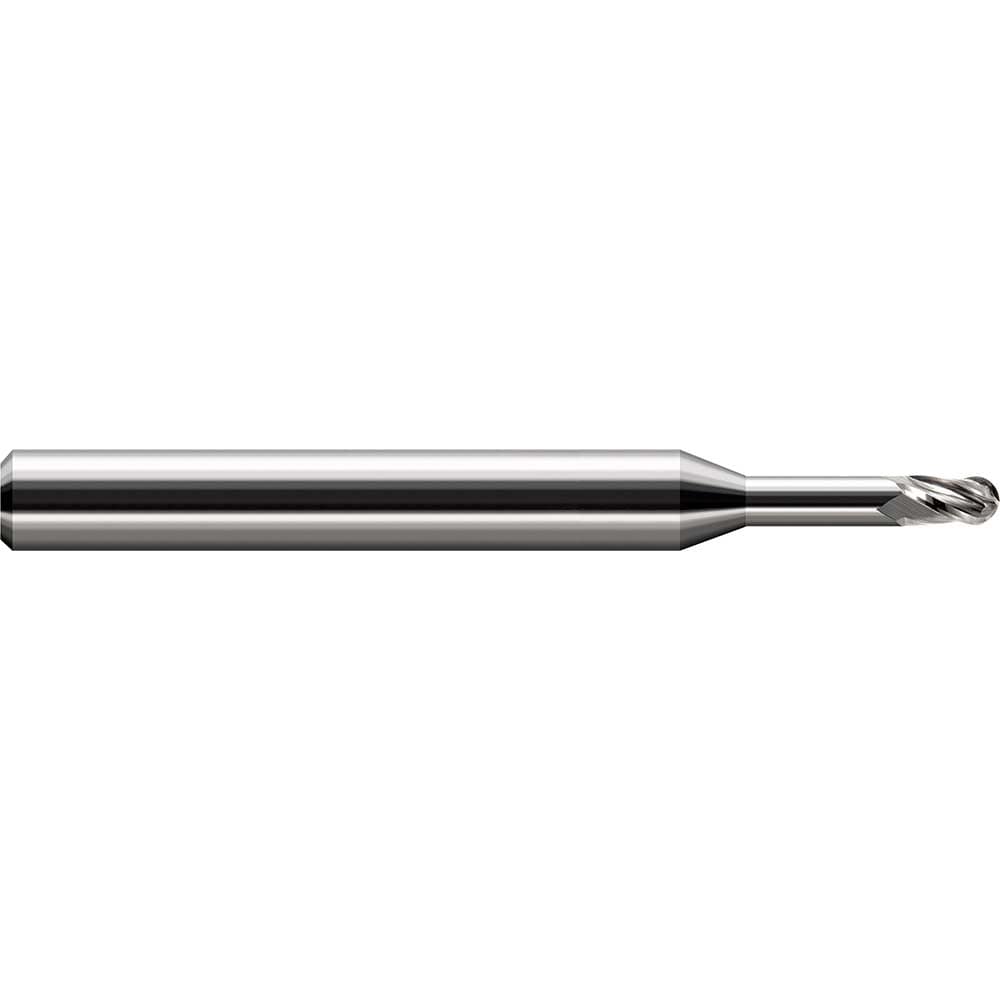

Ball End Mill: 0.0390" Dia, 0.0590" LOC, 4 Flute, Solid Carbide

Ball End Mill: 0.0390" Dia, 0.0590" LOC, 4 Flute, Solid Carbide


Item #: 06481048
Brand: Harvey Tool
Model #: 803139

Product Specifications

Mill Diameter (Decimal Inch) 0.0390
Number Of Flutes 4
End Mill Material Solid Carbide
Coating/Finish Bright/Uncoated
Overall Length (Inch) 2-1/2
Shank Diameter (Inch) 1/8
Extended Reach Yes
Variable Helix No
Variable Index No
Helix Angle 30
Overall Length (Decimal Inch) 2.5000
Chipbreaker No
Undercutting No
Length Of Cut Range (Decimal Inch) 0.0500 - 0.1000
Length Type Stub
Material Removal Type Roughing & Finishing
Shank Diameter (Decimal Inch) 0.1250
Nose Radius (Decimal Inch) 0.0195
Neck Length (Decimal Inch) 0.1440
Reach Length (Inch) 13/64
Reach Length (Decimal Inch) 0.2030
Mill Diameter Tolerance +0.0005/-0.0005 in
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code P; K; M; N
Material Grade Carbide
Flute Direction Right Hand
Cutting Direction Right Hand
Series Miniature End Mills - Ball - Long Reach, Stub Flute, Miniature End Mills
Flute Type Spiral
UNSPSC Code 27112803
Centercutting Yes
Coating Classification Uncoated
Single Or Double End Single
Shank Type Straight-Cylindrical
Pitch Normal
Coolant Through No
Length Of Cut (Decimal Inch - 4 Decimals) 0.0590
Manufacturers Catalog Number 803139
System Of Measurement Decimal Inch
$45.84
