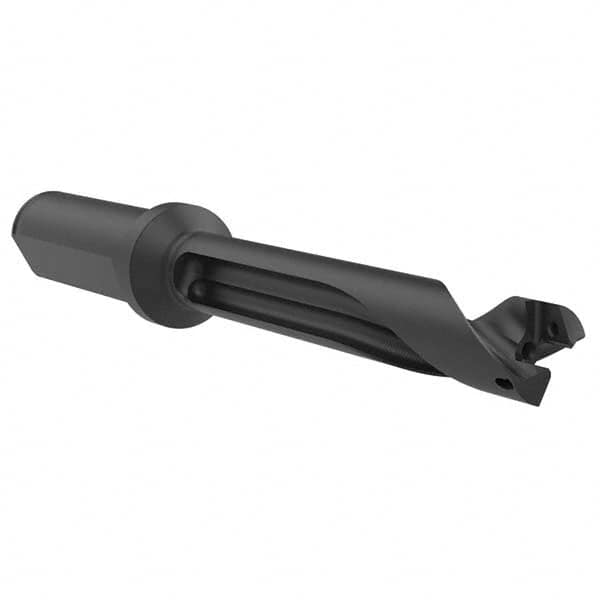

Allied Machine and Engineering - 0.6299" to 0.6692" Diam 7xD 4-11/16" Max Depth Straight Flute Spade Drill
Item #: 12329678
Brand: Allied Machine and Engineering
Model #: ST07160-075F
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 16 |
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (Decimal Inch) | 0.6692 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 7-29/32 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Inch) | 4-11/16 |
| Flute Type | Straight Flute |
| Body Length (Inch) | 5-7/8 |
| Shank Length (Inch) | 2-1/32 |
| Series Code/Seat Size | 16 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
