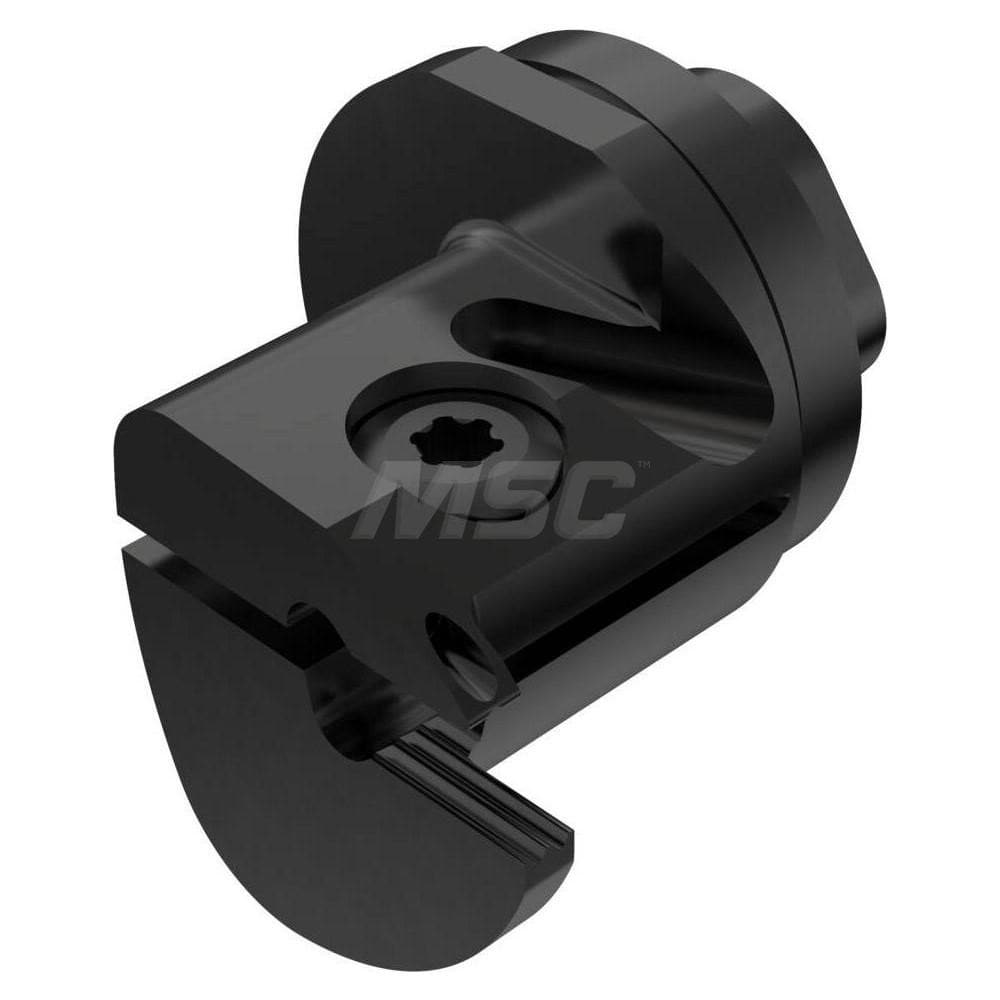

Modular Grooving Head: Right Hand, Cutting Head, System Size GL25, Uses LC.. Size 1303 Inserts 0.256″ Max Depth of Cut, Through Coolant, Series GL25-CGGR-19025-1303JET
Item #: 20802211
Brand: Seco
Model #: 03212511
Product Specifications
| System Size | GL25 |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Maximum Groove Width (Decimal Inch) | 0.1180 |
| Cutting Direction | Right Hand |
| Modular Head Style | Cutting Head |
| Compatible Insert Style | LC.. |
| Compatible Insert Size Code | 1303 |
| Series | GL25-CGGR-19025-1303JET |
| Center to Cutting Edge (Decimal Inch) | 0.7480 |
| Head Length Projection (Decimal Inch) | 0.6690 |
| Coolant Through | Yes |
