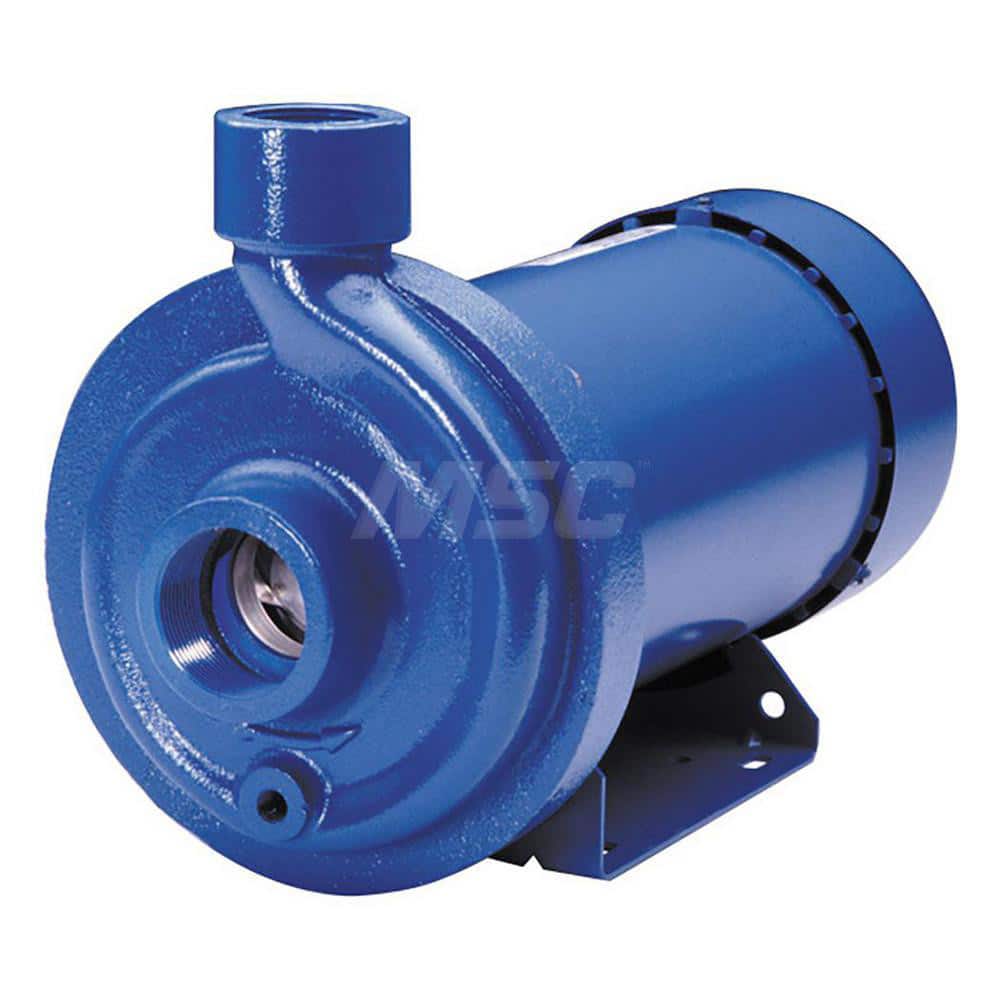

Straight Pumps; Current Type: AC; Amperage Rating: 10.2/5.3-5.1; Phase: 1; Horsepower: 3/4; Motor Type: TEFC; Inlet Size: 1-1/4; Maximum Flow Rate (GPM): 180.00; Maximum Head Pressure (psi): 65.0; Maximum Head Pressure (Ft): 150; Housing Material: Cast Ir
Item #: 20517140
Brand: Goulds Pumps
Model #: 100MC1D4D0
Product Specifications
| Current Type | AC |
| Amperage Rating | 10.2/5.3-5.1 |
| Phase | 1 |
| Horsepower | 3/4 |
| Motor Type | TEFC |
| Inlet Size | 1-1/4 |
| Maximum Flow Rate (GPM) | 180.00 |
| Maximum Head Pressure (psi) | 65.0 |
| Maximum Head Pressure (Ft) | 150 |
| Housing Material | Cast Iron |
| Impeller Material | 316 SS |
| Shaft Material | 316 Stainless Steel |
| Seal Material | Carbon Ceramic Buna; Stainless Steel |
| GPM @ 40 Feet of Head | 44 |
| GPM @ 50 Feet of Head | 38 |
| GPM @ 60 Feet of Head | 31 |
| GPM @ 70 Feet of Head | 23 |
| GPM @ 80 Feet of Head | 14 |
| Shut Off Feet | 83 |
| Thermal Overload Protection | Yes |
