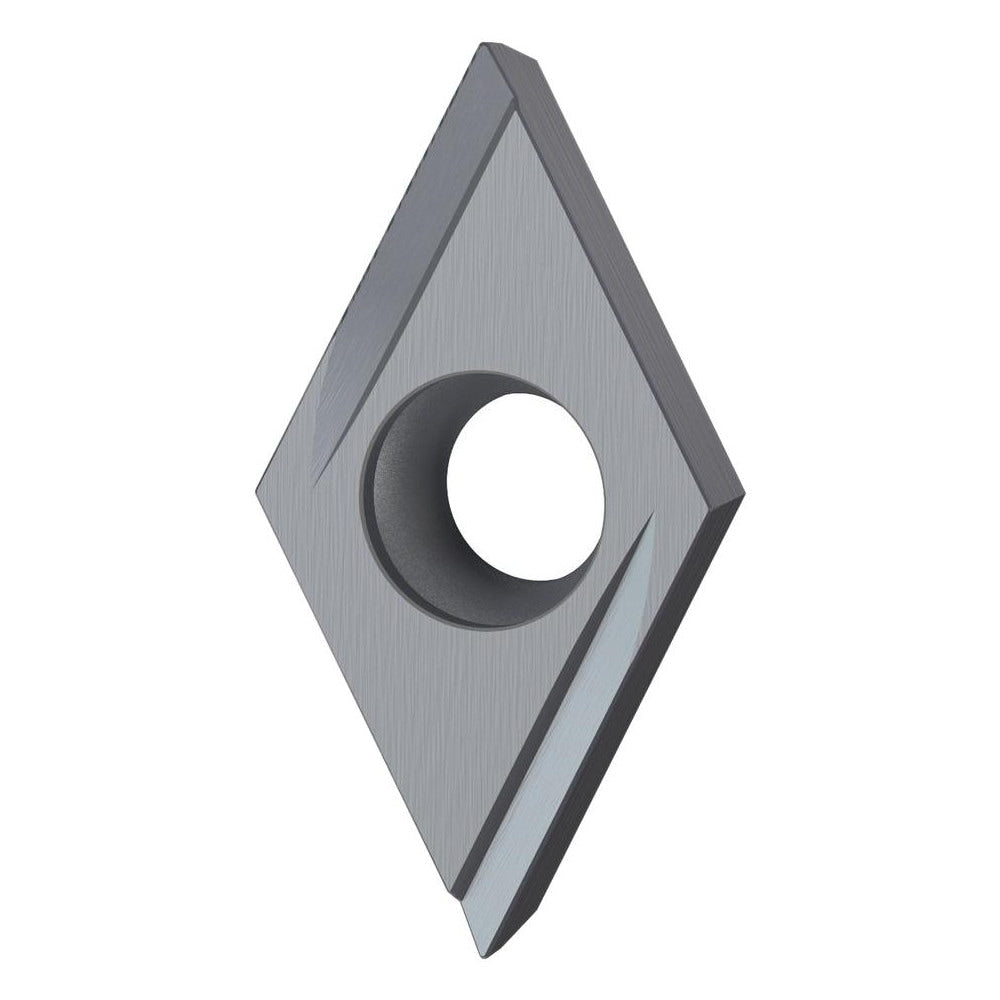

Turning Insert: DCGT32502MRPPS KCP20S, Carbide
Item #: 93511921
Brand: Kennametal
Model #: 7154797
Product Specifications
| ANSI Insert Code | DCGT32502 |
| ISO Insert Code | DCGT11T301 |
| Relief Angle | 7.000 |
| Insert Style | DCGT |
| Corner Radius (Decimal Inch) | 0.0040 |
| Included Angle | 55.00 |
| Manufacturer Grade | KCP20S |
| Coating/Finish | AlTiN |
| Wiper Edge | No |
| Insert Hand | Right Hand |
| Insert Thickness (Inch) | 5/32 |
| Series | DCGT |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 55° |
| Chip Breaker Operation | Medium Machining |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Insert Holding Method | Screw-On |
| Width (Inch) | 5/32 |
| Clearance Code | C |
| Tolerance Code | G |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4584 |
| Iso Code | DCGT11T301MRPPS |
| Manufacturers Catalog Number | DCGT32502MRPPS KCP20S |
| Chip Breaker | PPS |
| ANSI Size Code | 32502 |
| ISO Size Code | 11T301 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32502 |
| Country of Origin | Japan |
