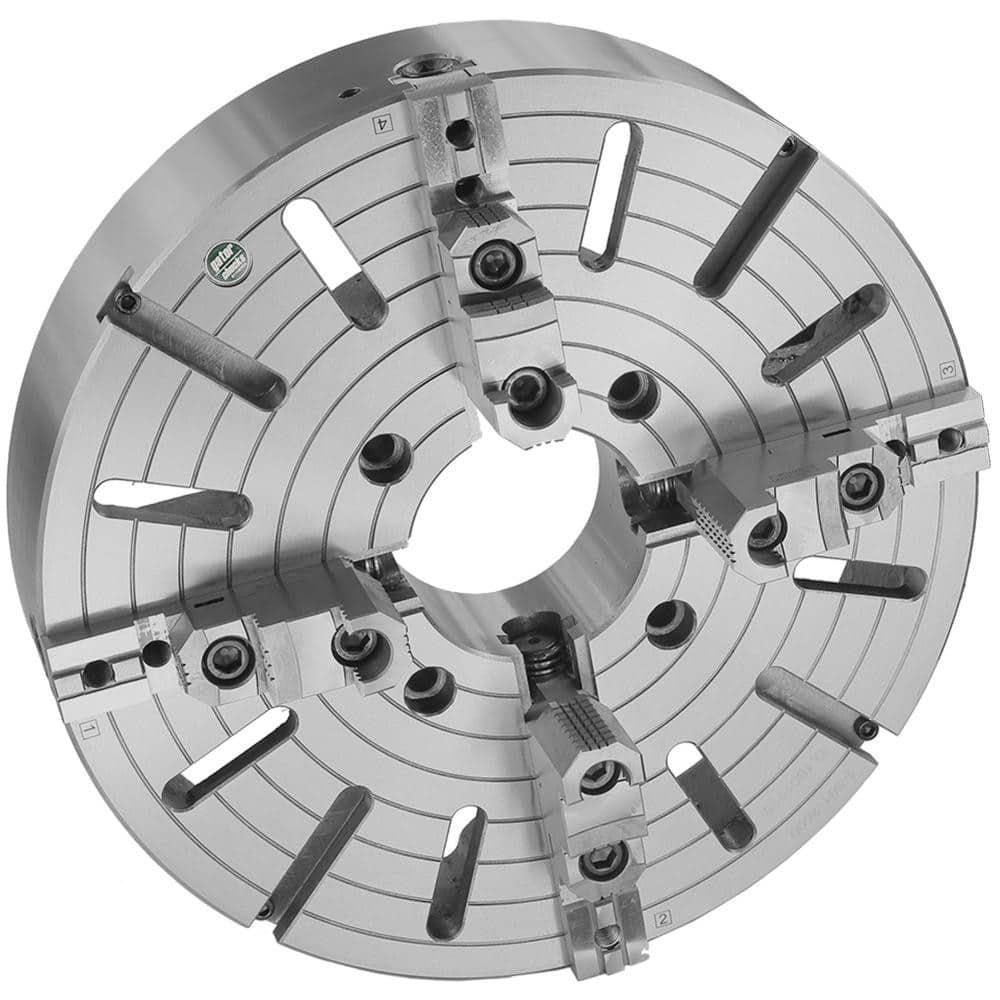

Independent Manual Lathe Chuck: 4-Jaw, 20″ Dia Two-Piece Jaws, Plain Back Mount, 500 Max RPM
Item #: 20042529
Brand: Gator Lathe Chucks
Model #: 1-301-2000
Product Specifications
| Chuck Type | Independent |
| Material | Semi-Steel; Cast Iron |
| Jaw Type | Two-Piece |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 4.9210 |
| Chuck Diameter (Decimal Inch) | 20.0000 |
| Chuck Diameter (Inch) | 20 |
| Minimum Jaw Capacity (Inch) | 1.7700 |
| Minimum Jaw Capacity (mm) | 1.77 |
| Maximum Jaw Capacity (mm) | 19.69 |
| Maximum Jaw Capacity (Inch) | 19.6900 |
| Jaw Height (Decimal Inch) | 3.5550 |
| Maximum Rpm | 500 |
| Mount Type | Plain Back |
| TIR Repeatability (Decimal Inch) | 0.0040 |
| Number Of Jaws | 4 |
| Contents | (1) Set of Master & Hard Top Reversible Jaws; Adapter Mounting Bolts; Eye Bolts; Chuck Wrench; Hex Keys |
