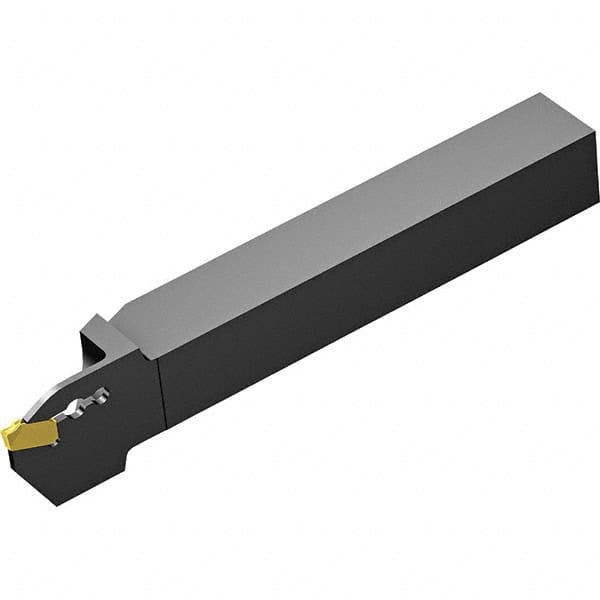

Sandvik Coromant - 9.53mm Max Depth, 0 to 1" Width, External Left Hand Nonface Grooving Toolholder
Item #: 38839577
Brand: Sandvik Coromant
Model #: 6427693
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Inch) | 0 |
| Maximum Depth of Cut (mm) | 9.53 |
| Minimum Groove Width (Decimal Inch) | 0.0000 |
| Maximum Groove Width (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 1.0000 |
| Toolholder Style | QD-LF |
| Insert Compatibility | QD-NB |
| Shank Height (Inch) | 3/4 |
| Shank Width/Diameter (Inch) | 3/4 |
| Series | CoroCut QD |
| Through Coolant | Non Coolant Through |
| Insert Seat Size | B |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.0000 |
| Head Height (Inch) | 3/4 |
