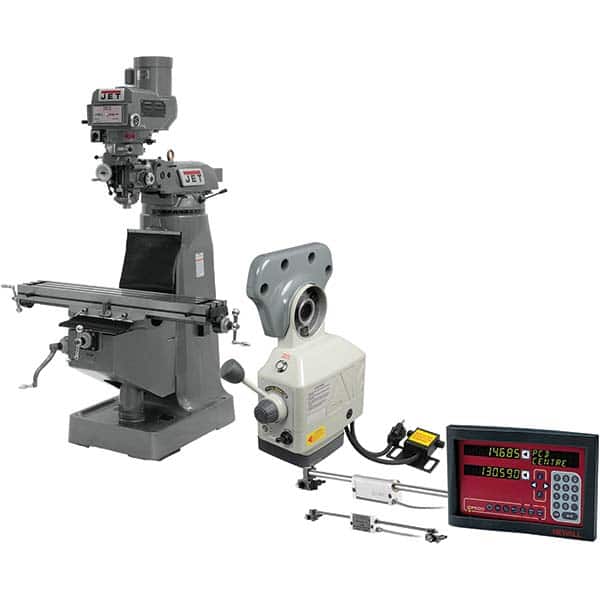

Knee Milling Machine: 4.5″, 3 hp, Variable Speed Pulley Control, 3 Phase 60 to 4,200 RPM, R8 Spindle Taper
Item #: 19478767
Brand: Jet
Model #: 9774232/4104673
Product Specifications
| Minimum Spindle to Column Distance (Decimal Inch) | 4.5000 |
| Minimum Spindle to Column Distance (Inch) | 4-1/2 in |
| Minimum Spindle to Column Distance (mm) | 4.50 |
| Maximum Spindle to Table Distance (Inch) | 19.0000 |
| Maximum Spindle to Table Distance (mm) | 19.00 |
| Maximum Spindle to Table Distance (Decimal Inch) | 17.5000 |
| Minimum Spindle Speed | 60 RPM |
| Maximum Spindle Speed | 4200 RPM |
| Forward Head Tilt (Degrees) | 45 |
| Phase | 3 |
| Backward Head Tilt (Degrees) | 45 |
| Left-Hand Head Tilt (Degrees) | 90 |
| Left-hand Head Tilt | 90 ? |
| Right-Hand Head Tilt (Degrees) | 90 |
| Right-hand Head Tilt | 90 ? |
| Cross Travel (Decimal Inch) | 12.0000 |
| Cross Travel | 12 in |
| Longitudinal Travel | 34 in |
| Longitudinal Travel (Decimal Inch) | 34.0000 |
| Knee Travel (Decimal Inch) | 14.5000 |
| Knee Travel | 14.5 in |
| Quill Diameter (Inch) | 3-3/8 |
| Quill Diameter (Decimal Inch) | 3.3750 |
| Horsepower | 3.00 |
| Voltage | 460; 230 |
| Table Load Capacity (Lb.) | 660.00 |
| Table Length (Inch) | 49 |
| Table Width (Inch) | 9 |
| Ram Travel Length (Inch) | 14-1/2 |
| Spindle Speed Control | Variable Speed Pulley |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Travel Length (Inch) | 5 |
| Overall Height (Decimal Inch) | 85.0000 |
| Overall Height (Inch) | 85 |
| Overall Length (Inch) | 65-1/2 |
| Overall Depth (Mm) | 63.00 |
| Includes | Ram Mount Adapter Plate Kit Accessories; X-Axis 1-32 in/min Speed Mill Power Feed; 12 x 36 in 2-Axis MN300 Mill Kit |
| Spindle Power Feed Rate Per Minute (in/rev) | 0.0015; 0.0030; 0.0060 |
 | |
| MSC Part # | 19478767 |
| Mfr Part # | 9774232/4104673 |
