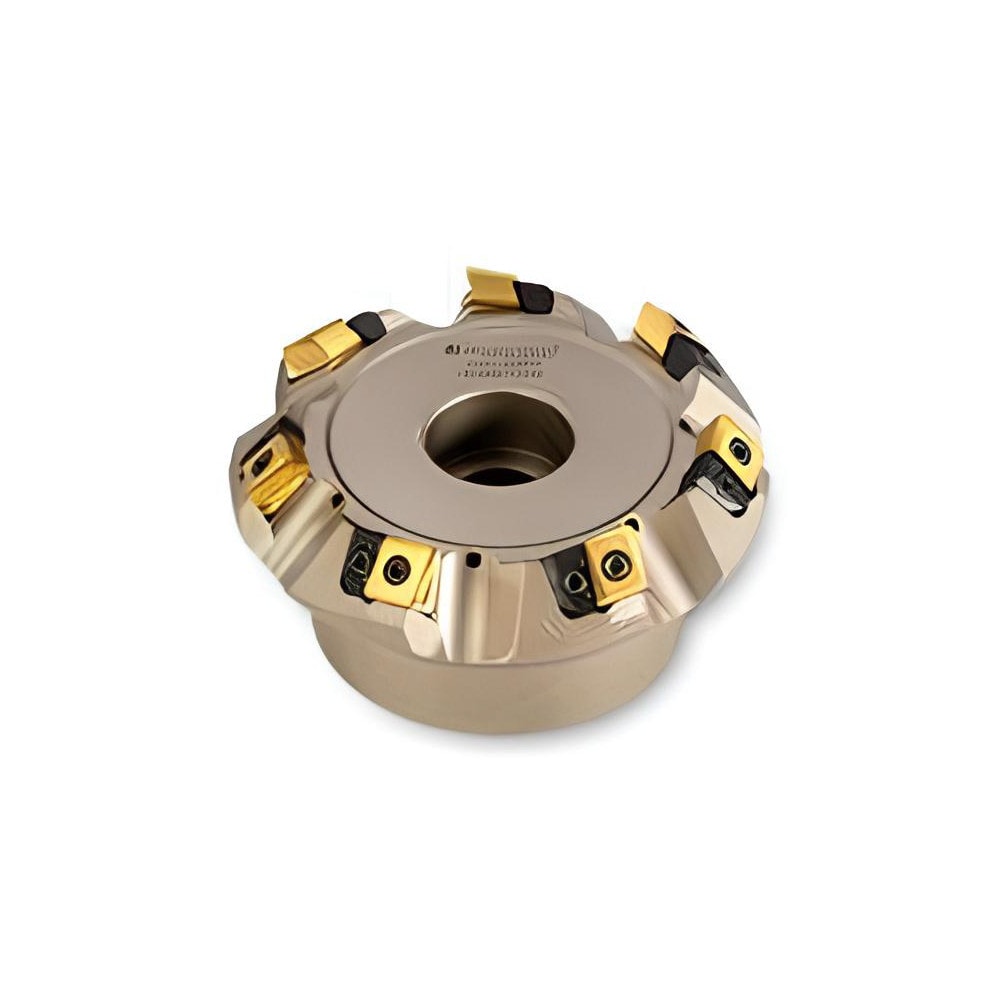

Brand: Ingersoll Cutting Tools / Part #: 3029367

Brand: Ingersoll Cutting Tools / Part #: 3029367


Item #: 96711551
Brand: Ingersoll Cutting Tools
Model #: 3029367

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 6.0000
Minimum Cutting Diameter (Inch) 6
Maximum Cutting Diameter (mm) 169.67
Maximum Cutting Diameter (Decimal Inch) 6.6800
Maximum Depth of Cut (Decimal Inch) 0.3200
Arbor Hole Diameter (Decimal Inch) 1.5000
Arbor Hole Diameter (Inch) 1-1/2
Lead Angle 45.000
Compatible Insert Size Code 324
Cutter Style SN2J
Cutting Direction Right Hand
Insert Holding Method Screw
Rake Negative
Series SN2J
Keyway Width (Decimal Inch) 0.6250
Keyway Width (Inch) 5/8
Overall Height (Inch) 2-3/8
Overall Height (Decimal Inch) 2.3750
Maximum Body Diameter (Decimal Inch) 6.8300
Maximum Body Diameter (mm) 173.48
Pitch Type Coarse
Tool Application Chamfering; Facing
Tool Performance General Purpose
Primary Workpiece Material Universal
Complete Insert Compatibility ZGM324; DGx324
Toolholder Material Steel
Manufacturers Catalog Number SN2J-06R01
Number Of Cutter Inserts 10
Coolant Through No
Number Of Flutes 10
$1,534.50
