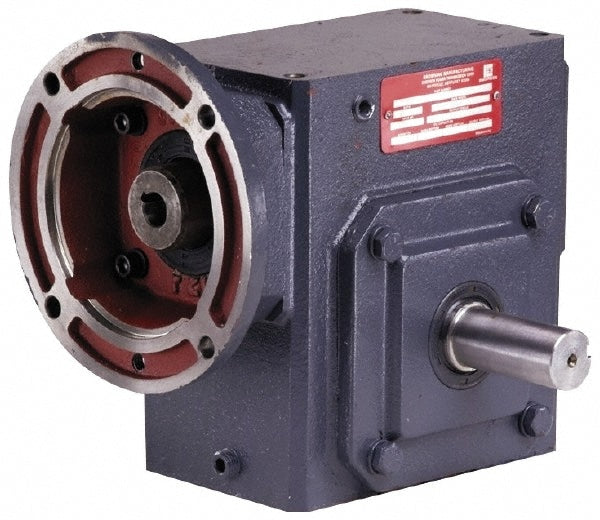

Speed Reducer: 3/4 hp Max Input
Item #: 08434417
Brand: Morse
Model #: XF1116
Product Specifications
| Centerline Distance | 2.3800 |
| Shaft Type | Double |
| Ratio | 25:1 |
| Maximum Input Horsepower | 3/4 |
| Nema/Iec Frame Size | 56C NEMA |
| Minimum Torque (In/Lb) | 185.0 |
| Maximum Torque (In/Lb.) | 556.0 |
| Bore Diameter (Decimal Inch) | 0.6250 |
| Shaft Diameter (Decimal Inch) | 1.1250 |
| Minimum Input Horsepower | 0.25 |
| Output RPM at 1750 Input | 70.0 |
| Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750 | 371 |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750 | 244 |
| Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750 | 556 |
| Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750 | 185 |
| Height (Decimal Inch) | 6.9400 |
| Length (Decimal Inch - 4 Decimals) | 6.1300 |
| Width (Decimal Inch - 4 Decimals) | 4.0800 |
| UNSPSC Code | 26111500 |
