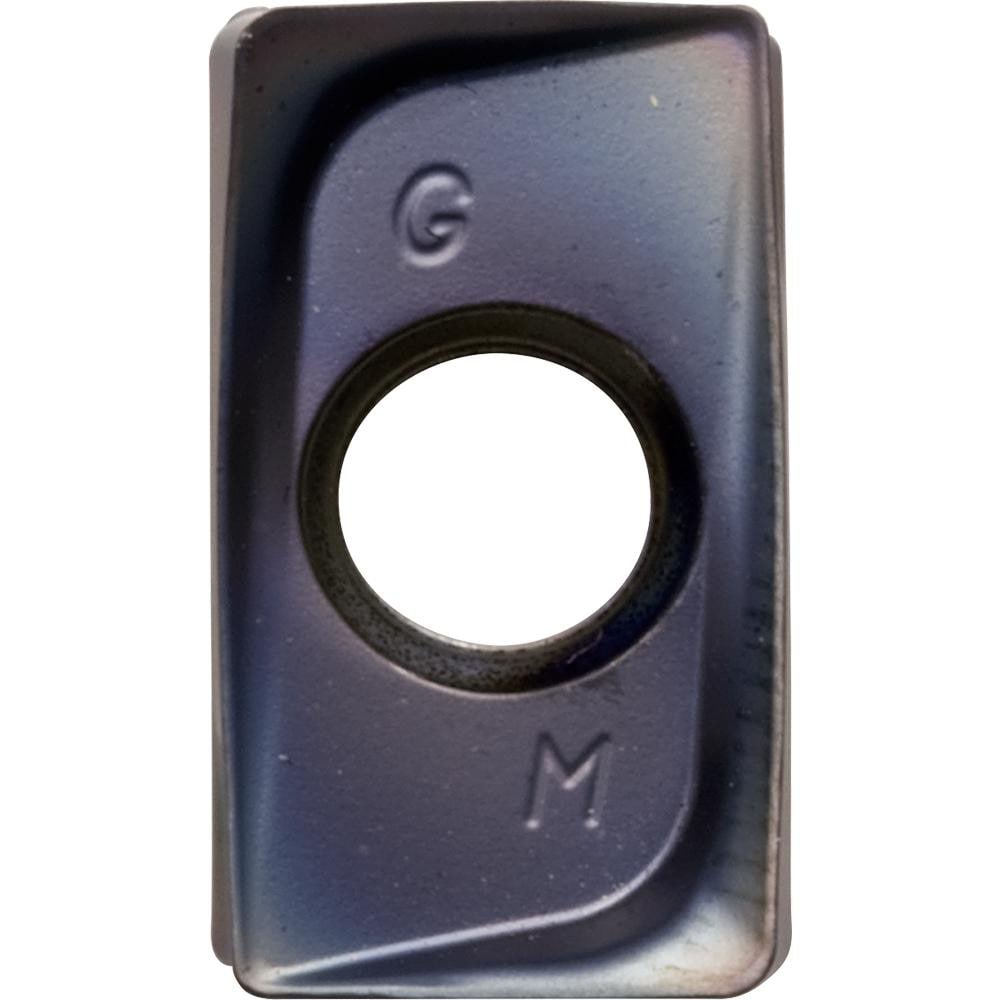

Milling Insert: LOMU150508ER-SM PR1835, Carbide
Item #: 86472784
Brand: Kyocera
Model #: TLU00082
Product Specifications
Insert Style | LOMU |
Insert Size | 150508 |
Insert Material | Carbide |
Insert Shape | Rectangle |
Manufacturer Grade | PR1835 |
Corner Radius (Decimal Inch) | 0.0315 |
Corner Radius (mm) | 0.80 |
Number Of Cutting Edges | 4 |
Thickness (Decimal Inch - 4 Decimals) | 0.2205 |
Thickness (mm) | 5.6000 |
Coating/Finish | MEGACOAT NANO EX |
Corner Radius (Inch) | 1/32 |
Insert Hand | Right Hand |
Series | MEW Milling |
Coating Process | PVD |
Hole Diameter (Mm) ( - 0 Decimals) | 4.8000 |
Hole Diameter (Decimal Inch) | 0.1890 |
Cutting Edge Effective Length (mm) | 15.70 |
Cutting Edge Effective Length (Decimal Inch) | 0.6181 |
Rake | Positive |
Primary Workpiece Material | Austenitic Stainless Steel; Titanium Alloy; Precipitation Hardened Stainless Steel |
Primary Workpiece Material Code | S; M |
Secondary Workpiece Material | Mold Steel; Martensitic Stainless Steel; Alloy Steel; Carbon Steel |
Secondary Workpiece Material Code | P; M |
Ansi Code | LOMU150508ERSMPR1835 |
Iso Code | LOMU150508ER-SM |
Cutting Edge Style | Low Cutting Force; Honed |
Manufacturers Catalog Number | LOMU150508ERSMPR1835 |
Chip Breaker | ER-SM |
Cutting Direction | Right Hand |
UNSPSC Code | 23291601 |
Insert Holding Method | Screw |
Single or Double Sided Insert | Double |
Included Angle Degree | 90 |
Width (Decimal Inch - 4 Decimals) | 0.3622 |
Width (mm - 2 Decimals) | 9.20 |
Multi-Use Tool | Yes |
Country of Origin | Japan |
