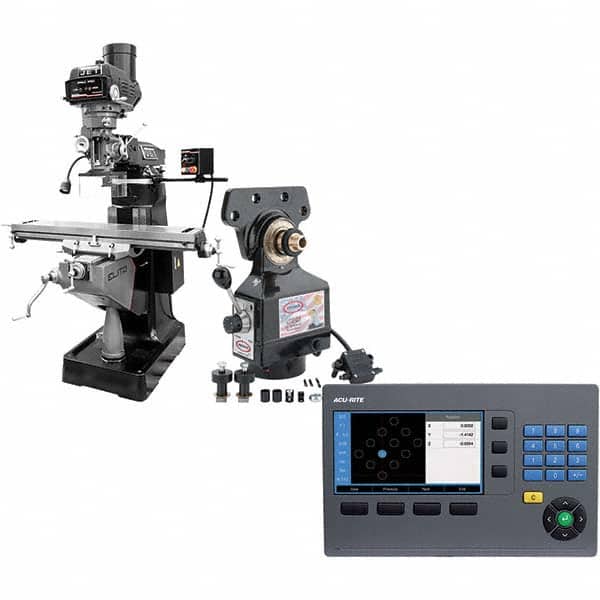

Knee Milling Machine: 6″, 3 hp, Variable Speed Pulley Control, 3 Phase 60 to 4,500 RPM, R8 Spindle Taper
Item #: 18477331
Brand: Jet
Model #: 6900228/4608173
Product Specifications
| Minimum Spindle to Column Distance (Decimal Inch) | 6.0000 |
| Minimum Spindle to Column Distance (Inch) | 6 in |
| Minimum Spindle to Column Distance (mm) | 19.00 |
| Minimum Spindle Speed | 60 RPM |
| Maximum Spindle Speed | 4500 RPM |
| Forward Head Tilt (Degrees) | 45 |
| Phase | 3 |
| Backward Head Tilt (Degrees) | 45 |
| Left-Hand Head Tilt (Degrees) | 90 |
| Left-hand Head Tilt | 90.0 ? |
| Right-Hand Head Tilt (Degrees) | 90 |
| Right-hand Head Tilt | 90.0 ? |
| Cross Travel (Decimal Inch) | 12.0000 |
| Cross Travel | 12.0 in |
| Longitudinal Travel | 36.0 in |
| Longitudinal Travel (Decimal Inch) | 36.0000 |
| Knee Travel (Decimal Inch) | 16.0000 |
| Knee Travel | 16.0 in |
| Quill Diameter (Inch) | 3/8 |
| Quill Diameter (Decimal Inch) | 0.3750 |
| Horsepower | 3.00 |
| Voltage | 460; 230 |
| Table Load Capacity (Lb.) | 550.00 |
| Table Length (Inch) | 49 |
| Table Width (Inch) | 9 |
| Spindle Speed Control | Variable Speed Pulley |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Travel Length (Inch) | 5 |
| Number Of T-slots | 3 |
| Overall Height (Decimal Inch) | 84.0000 |
| Overall Height (Inch) | 84 |
| Overall Length (Inch) | 68 |
| Overall Length (Decimal Inch) | 68.0000 |
| Overall Depth (Inch) | 63 |
| Overall Depth (Inch) | 63.0000 |
| Includes | 2-Axis Acu-Rite DRO System; Servo 200-150 Table Feed (MSC 79507034) |
| Standards | CSA; UL |
| Certification | CSA; UL |
| Warranty | 3 Year |
 | |
| MSC Part # | 18477331 |
| Mfr Part # | 6900228/4608173 |
