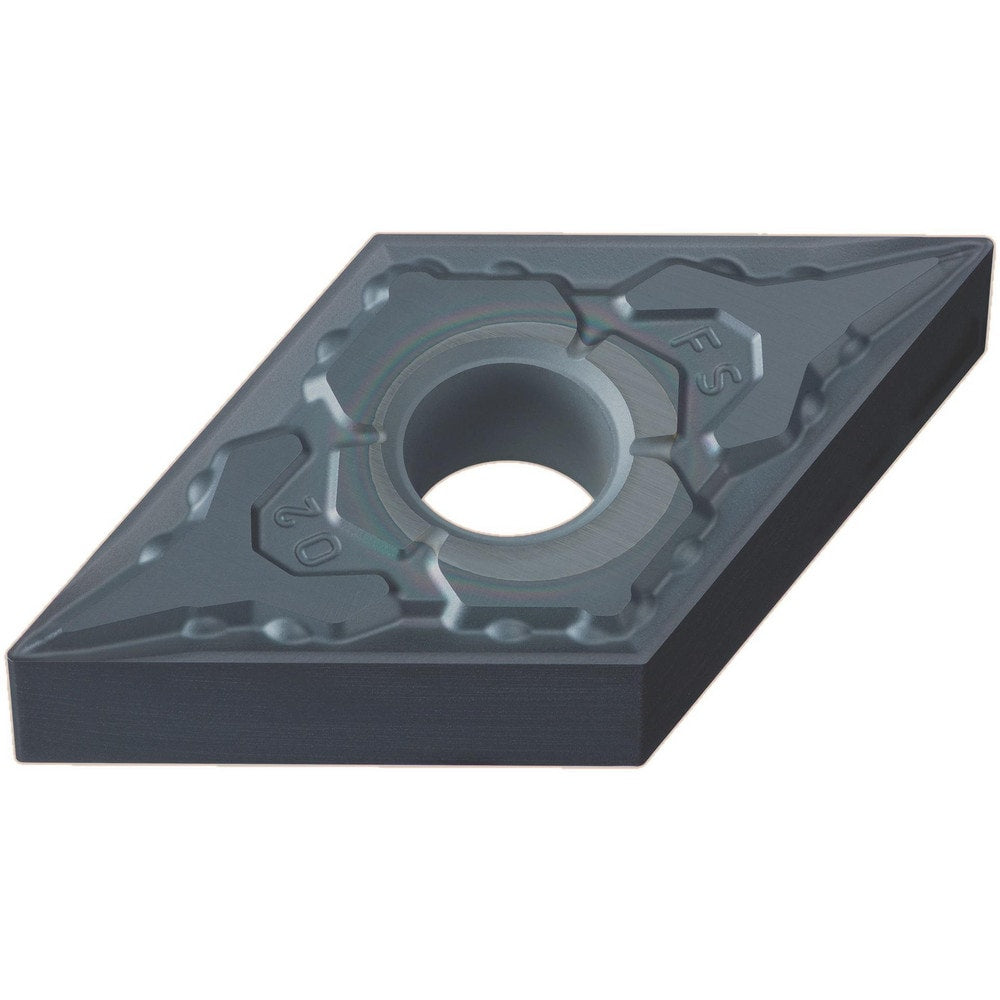

Turning Insert: DNGG431FS MP9015, Carbide

Turning Insert: DNGG431FS MP9015, Carbide


Item #: 06563233
Brand: Mitsubishi
Model #: 22817327

Product Specifications

ANSI Insert Code DNGG431
ISO Insert Code DNGG150404
Relief Angle 0
Insert Style DNGG
Corner Radius (mm) 0.40
Corner Radius (Inch) 1/64
Corner Radius (Decimal Inch) 0.0156
Included Angle 55
Manufacturer Grade MP9015
Coating/Finish PVD
Insert Hand Neutral
Insert Thickness (Inch) 3/16
Insert Thickness 4.76
Insert Thickness (Decimal Inch) 0.1875
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Inscribed Circle (mm) 12.70
Insert Material Carbide
Insert Shape D - Diamond (Rhombic) 55-Deg
Chip Breaker Operation Finishing
Grade Characteristics Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance Negative
Number Of Cutting Edges 4
Insert Shape Code D
Clearance Code N
Tolerance Code G
Primary Workpiece Material Code S
Chip Breaker FS
ANSI Size Code 431
ISO Size Code 150404
UNSPSC Code 23242105
Insert Size Code 4
$26.58
