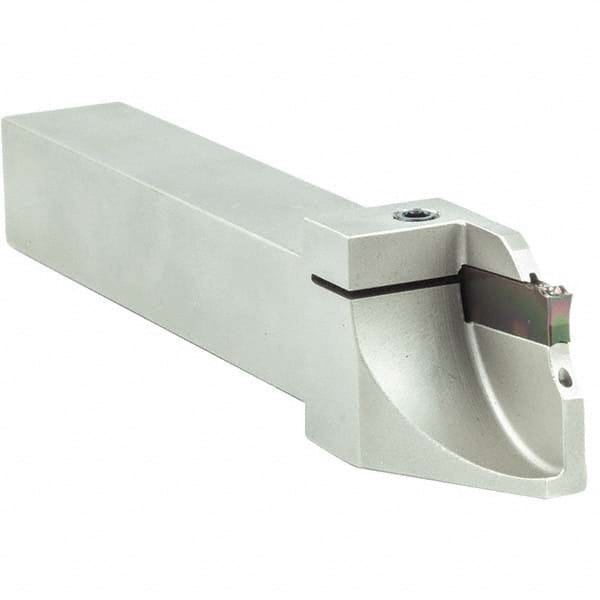

![0.512″ Max Depth, 0.079 to 1.024″ Width, External Right Hand Indexable Grooving/Cutoff Toolholder 4.331″ OAL, Uses SA 24-20\x85 Inserts, HSA Monoblock Toolholder, Through Coolant, Series SA Parting / Grooving](http://exactindustrialsupply.com/cdn/shop/products/1142923-21_9168a172-9bde-47f4-b48a-a21194a3ed53_1024x1024.jpg?v=1675200710)
0.512″ Max Depth, 0.079 to 1.024″ Width, External Right Hand Indexable Grooving/Cutoff Toolholder 4.331″ OAL, Uses SA 24-20\x85 Inserts, HSA Monoblock Toolholder, Through Coolant, Series SA Parting / Grooving
Item #: 17004102
Brand: Arno
Model #: 502405
Product Specifications
Internal or External | External |
Maximum Depth of Cut (Decimal Inch) | 0.5120 |
Maximum Depth of Cut (mm) | 13.00 |
Hand of Holder | Right Hand |
Maximum Groove Width (Decimal Inch) | 1.0240 |
Minimum Groove Width (Decimal Inch) | 0.0790 |
Minimum Groove Width (mm) | 2.01 |
Toolholder Style | HSA Monoblock |
Insert Holding Method | Screw |
Insert Compatibility | SA 24-20? |
Shank Height (Inch) | 1/2 |
Shank Width/Diameter (Decimal Inch) | 0.5000 |
Series | Grooving; SA Parting |
Overall Length (Decimal Inch) | 4.3310 |
Head Length (Decimal Inch) | 0.5120 |
Manufacturers Catalog Number | HSA 1212UD-R-SA2402-26-ACS2-.500 |
Coolant Through | Yes |
