![25mm Min Bore, Right Hand A20R PCLXR Indexable Boring Bar 200mm OAL, 20mm Shank Diam, Uses CXMG, A20R PCLXR Inserts, Through Coolant](http://exactindustrialsupply.com/cdn/shop/products/1642036AA-21_1024x1024.jpg?v=1675051412)

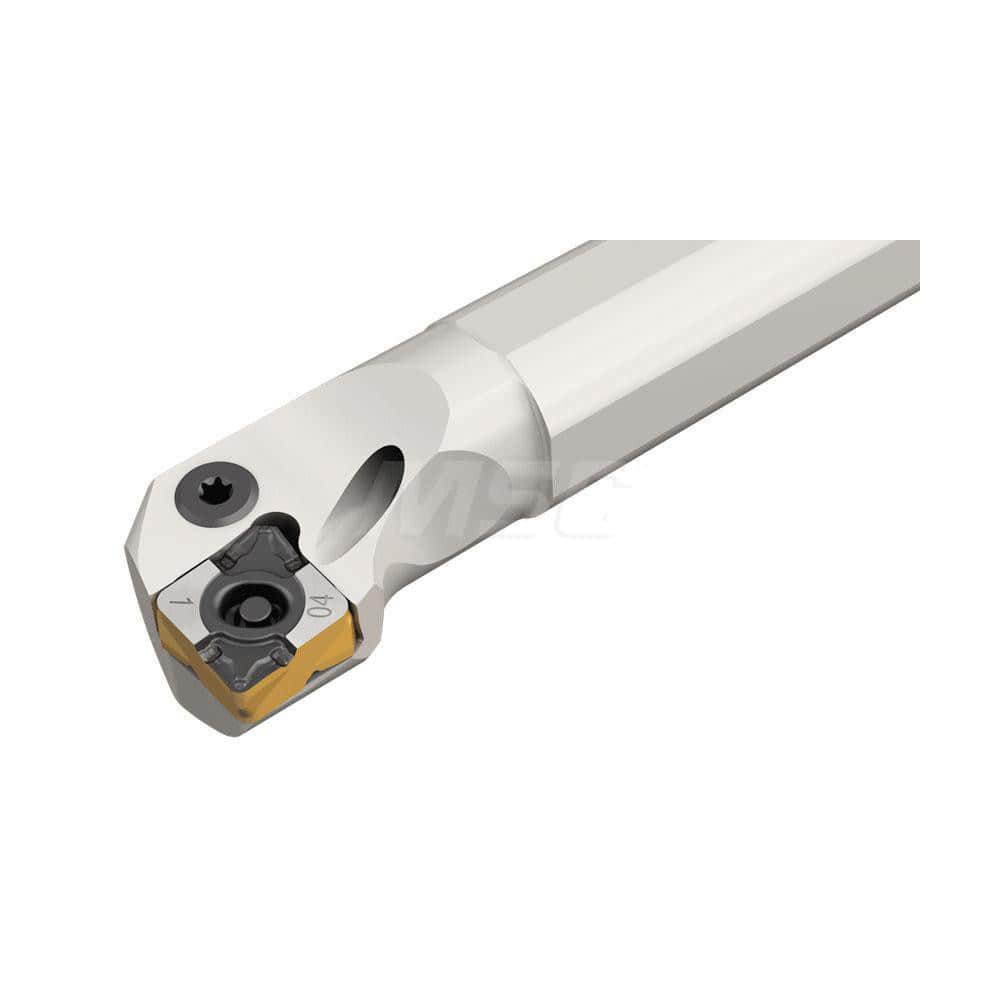

25mm Min Bore, Right Hand A20R PCLXR Indexable Boring Bar 200mm OAL, 20mm Shank Diam, Uses CXMG, A20R PCLXR Inserts, Through Coolant
Item #: 16421117
Brand: Iscar
Model #: 3345199
Product Specifications
Minimum Bore Diameter (mm) | 25.00 |
Minimum Bore Diameter (Decimal Inch) | 0.9840 |
Maximum Bore Depth (mm) | 30.00 |
Toolholder Style | A20R PCLXR; A20R PCLXL |
Insert Compatibility | CXMG |
Shank Diameter (Decimal Inch) | 0.7870 |
Shank Diameter (mm) | 20.00 |
Hand of Holder | Right Hand |
Overall Length (Decimal Inch) | 7.8740 |
Overall Length (mm) | 200.00 |
Compatible Insert Size Code | 09 |
Insert Holding Method | Lever |
Compatible Insert Shape | Diamond |
Rake | Positive (Radial); Positive (Axial) |
Cutting Direction | Right Hand |
Series | Isoturn |
Insert Inscribed Circle (mm) | 9.70 |
Compatible Insert Thickness (mm) | 4.65 |
Multi-use Tool | No |
Cutting Tool Application | Turning |
Center to Cutting Edge (mm) | 13.00 |
Standards | ISO 13399 |
Number of Inserts Used on Toolholder | 1 |
Maximum Bore Diameter (mm) | 80.00 |
Maximum Bore Diameter (Decimal Inch) | 3.1490 |
Number of Inserts Included in Order | 0 |
Coolant Through | Yes |
