![3/4″ Min Bore, Left Hand A-PCLXL Indexable Boring Bar 7″ OAL, 5/8″ Shank Diam, Uses CXMG, A-PCLXL Inserts, Through Coolant](http://exactindustrialsupply.com/cdn/shop/products/1642015-21_1024x1024.jpg?v=1675217303)

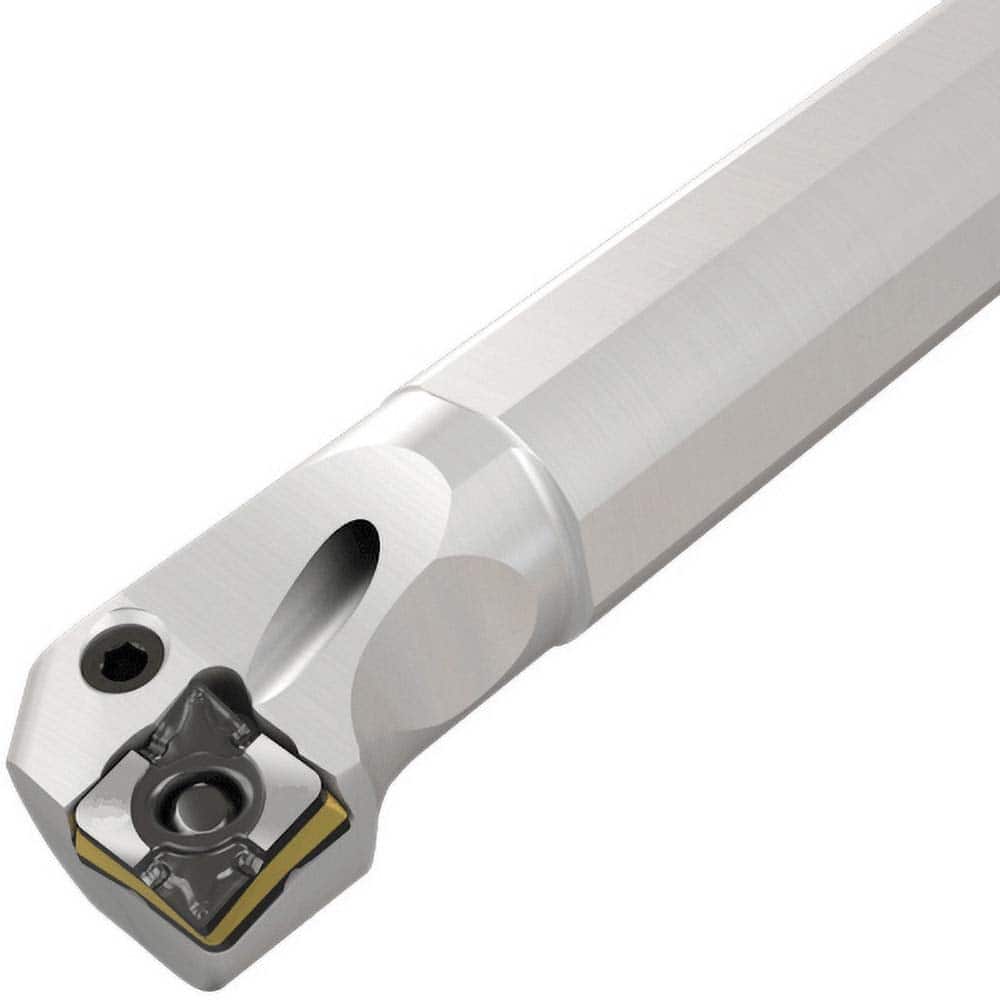

3/4″ Min Bore, Left Hand A-PCLXL Indexable Boring Bar 7″ OAL, 5/8″ Shank Diam, Uses CXMG, A-PCLXL Inserts, Through Coolant
Item #: 16420150
Brand: Iscar
Model #: 3346712
Product Specifications
Minimum Bore Diameter (Decimal Inch) | 0.7500 |
Minimum Bore Diameter (Inch) | 3/4 |
Maximum Bore Depth (Decimal Inch) | 1.1800 |
Toolholder Style | A-PCLXL |
Insert Compatibility | CXMG |
Shank Diameter (Decimal Inch) | 0.6250 |
Hand of Holder | Left Hand |
Shank Diameter (Inch) | 5/8 |
Overall Length (Decimal Inch) | 7.0000 |
Overall Length (Inch) | 7 |
Insert Holding Method | Lever |
Compatible Insert Shape | Diamond |
Rake | Positive (Radial); Positive (Axial) |
Cutting Direction | Left Hand |
Series | Isoturn |
Multi-use Tool | No |
Cutting Tool Application | Turning |
Center to Cutting Edge (Decimal Inch) | 0.4330 |
Standards | ISO 13399 |
Number of Inserts Used on Toolholder | 1 |
Maximum Bore Diameter (mm) | 63.50 |
Maximum Bore Diameter (Decimal Inch) | 2.5000 |
Number of Inserts Included in Order | 0 |
Coolant Through | Yes |
