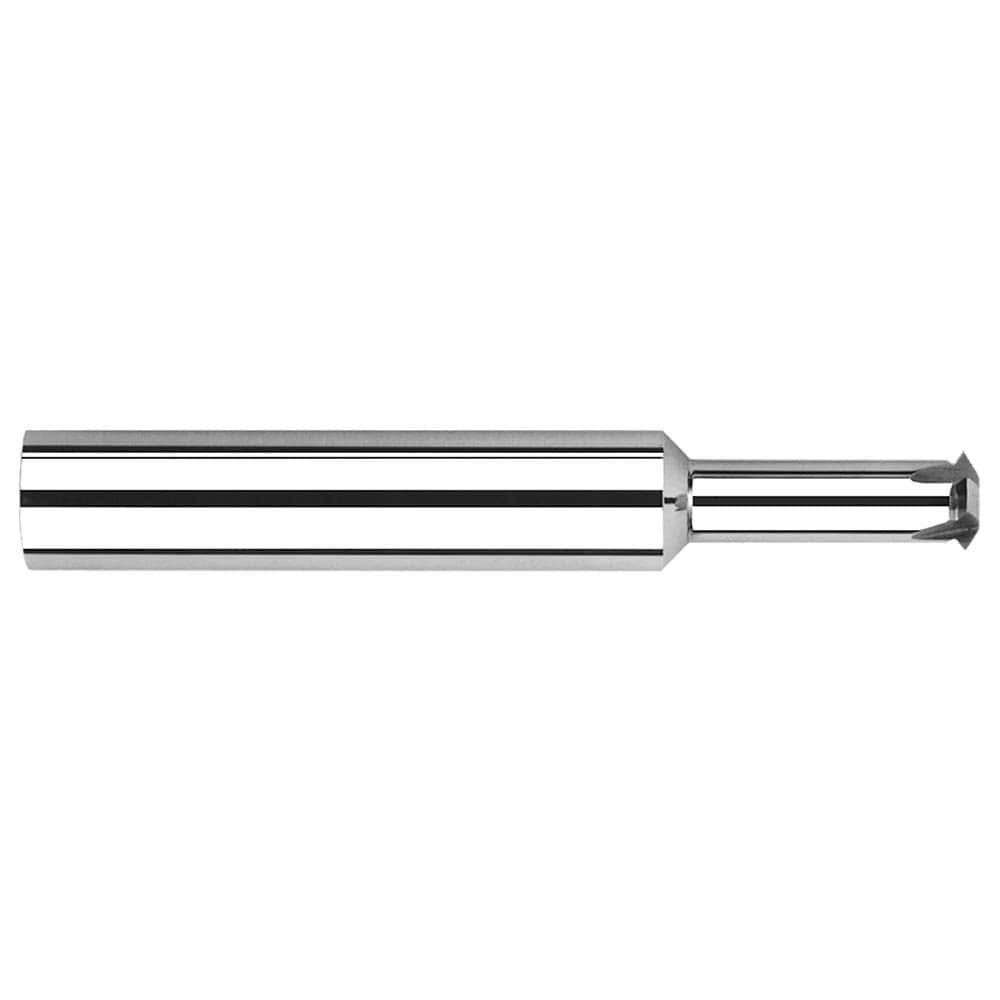

Single Profile Thread Mills; Maximum Threads Per Inch: 40; Minimum Pitch (Decimal Inch): 0.0625; Minimum Threads Per Inch: 16; Maximum Pitch (Decimal Inch): 0.0250; Material: Solid Carbide; Thread Type: Internal, External
Item #: 86818358
Brand: Harvey Tool
Model #: 771860
Product Specifications
| Maximum Threads Per Inch | 40 |
| Minimum Pitch (Decimal Inch) | 0.0625 |
| Minimum Threads Per Inch | 16 |
| Maximum Pitch (Decimal Inch) | 0.0250 |
| Material | Solid Carbide |
| Thread Type | Internal; External |
| Thread Size | 3/8-16 - 3/8-40 |
| Thread Depth (Decimal Inch) | 1.3750 |
| Shank Diameter (Inch) | 3/8 |
| Cutting Diameter (Decimal Inch) | 0.3000 |
| Minimum Nominal Diameter (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Series | Thread Milling Cutters - Single Form - UN Threads |
| Thread Standard | UN 60 Degree |
| Number Of Flutes | 4 |
| Coating/Finish | Bright/Uncoated |
| UNSPSC Code | 23242117 |
| Country of Origin | UNITED STATES |
