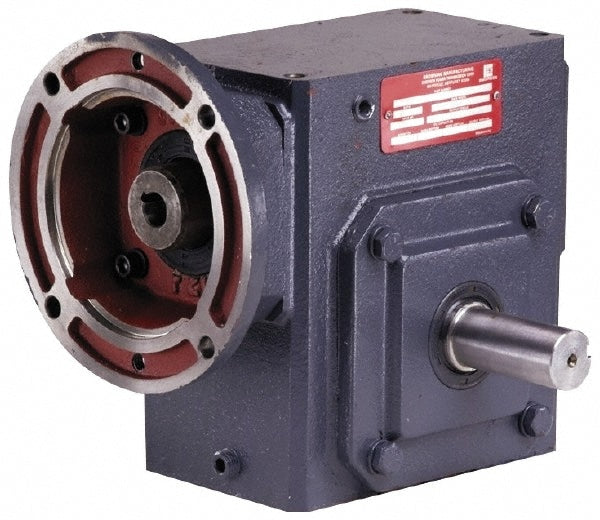

Speed Reducer: 3/4 hp Max Input
Item #: 08433039
Brand: Morse
Model #: XC1093
Product Specifications
| Centerline Distance | 1.5400 |
| Shaft Type | Single |
| Ratio | 10:1 |
| Maximum Input Horsepower | 3/4 |
| Nema/Iec Frame Size | 56C NEMA |
| Minimum Torque (In/Lb) | 80.0 |
| Maximum Torque (In/Lb.) | 240.0 |
| Bore Diameter (Decimal Inch) | 0.6250 |
| Shaft Diameter (Decimal Inch) | 0.7500 |
| Minimum Input Horsepower | 0.25 |
| Output RPM at 1750 Input | 175.0 |
| Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750 | 160 |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750 | 105 |
| Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750 | 240 |
| Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750 | 80 |
| Height (Decimal Inch) | 5.3800 |
| Length (Decimal Inch - 4 Decimals) | 5.1300 |
| Width (Decimal Inch - 4 Decimals) | 3.6900 |
| UNSPSC Code | 26111500 |
