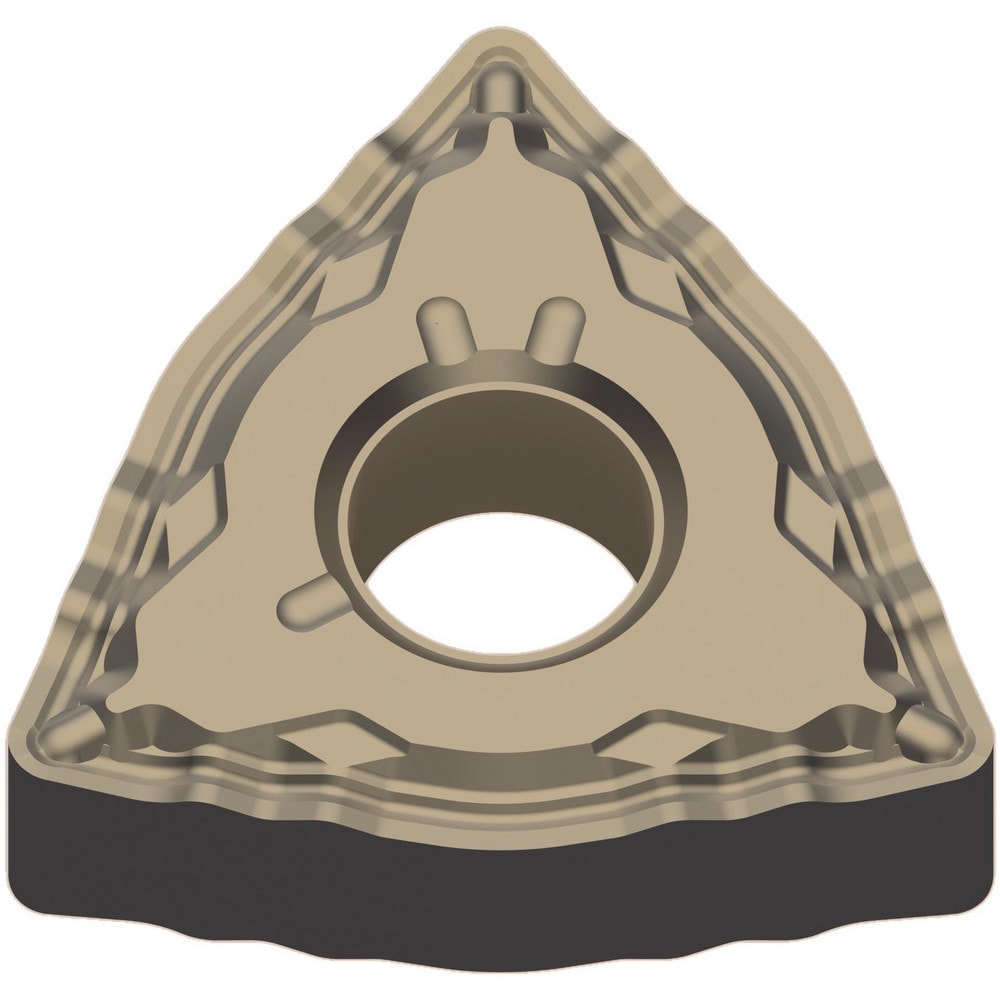

Turning Insert: WNMG433SA MC6015, Carbide

Turning Insert: WNMG433SA MC6015, Carbide


Item #: 06510333
Brand: Mitsubishi
Model #: 841740

Product Specifications

ANSI Insert Code WNMG433
ISO Insert Code WNMG080412
Relief Angle 0
Insert Style WNMG
Corner Radius (mm) 1.20
Corner Radius (Inch) 3/64
Corner Radius (Decimal Inch) 0.0469
Included Angle 80
Manufacturer Grade MC6015
Coating/Finish CVD
Insert Hand Neutral
Insert Thickness (Inch) 3/16
Insert Thickness 4.76
Insert Thickness (Decimal Inch) 0.1875
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Inscribed Circle (mm) 12.70
Insert Material Carbide
Insert Shape W - Trigon 80-Deg
Chip Breaker Operation Light Machining; Finishing
Grade Characteristics Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance Negative
Number Of Cutting Edges 6
Insert Shape Code W
Clearance Code N
Tolerance Code M
Primary Workpiece Material Code P
Chip Breaker SA
ANSI Size Code 433
ISO Size Code 080412
UNSPSC Code 23242105
Insert Size Code 4
$18.24
