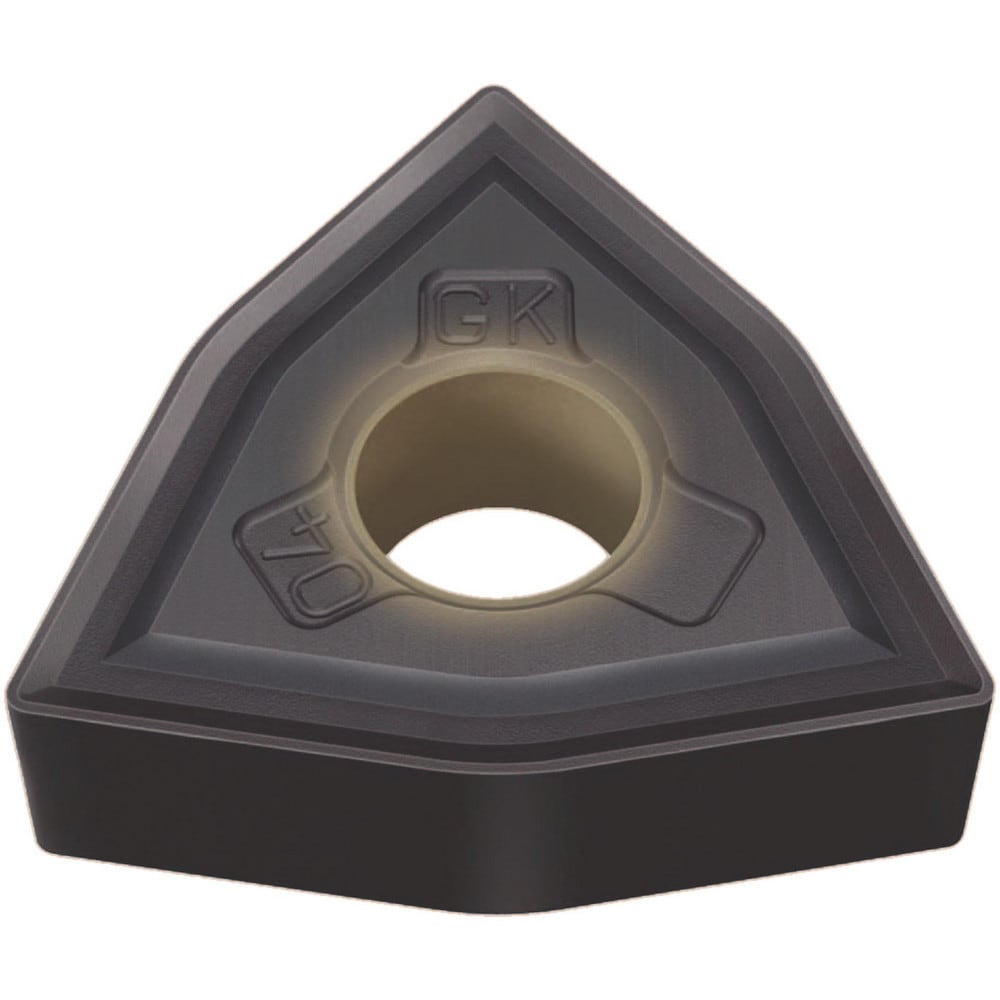

Turning Insert: WNMG332GK MC5015, Carbide
Item #: 06499867
Brand: Mitsubishi
Model #: 813546
Product Specifications
| ANSI Insert Code | WNMG332 |
| ISO Insert Code | WNMG060408 |
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Included Angle | 80 |
| Manufacturer Grade | MC5015 |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | W - Trigon 80-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | W |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | K |
| Chip Breaker | GK |
| ANSI Size Code | 332 |
| ISO Size Code | 060408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3 |
