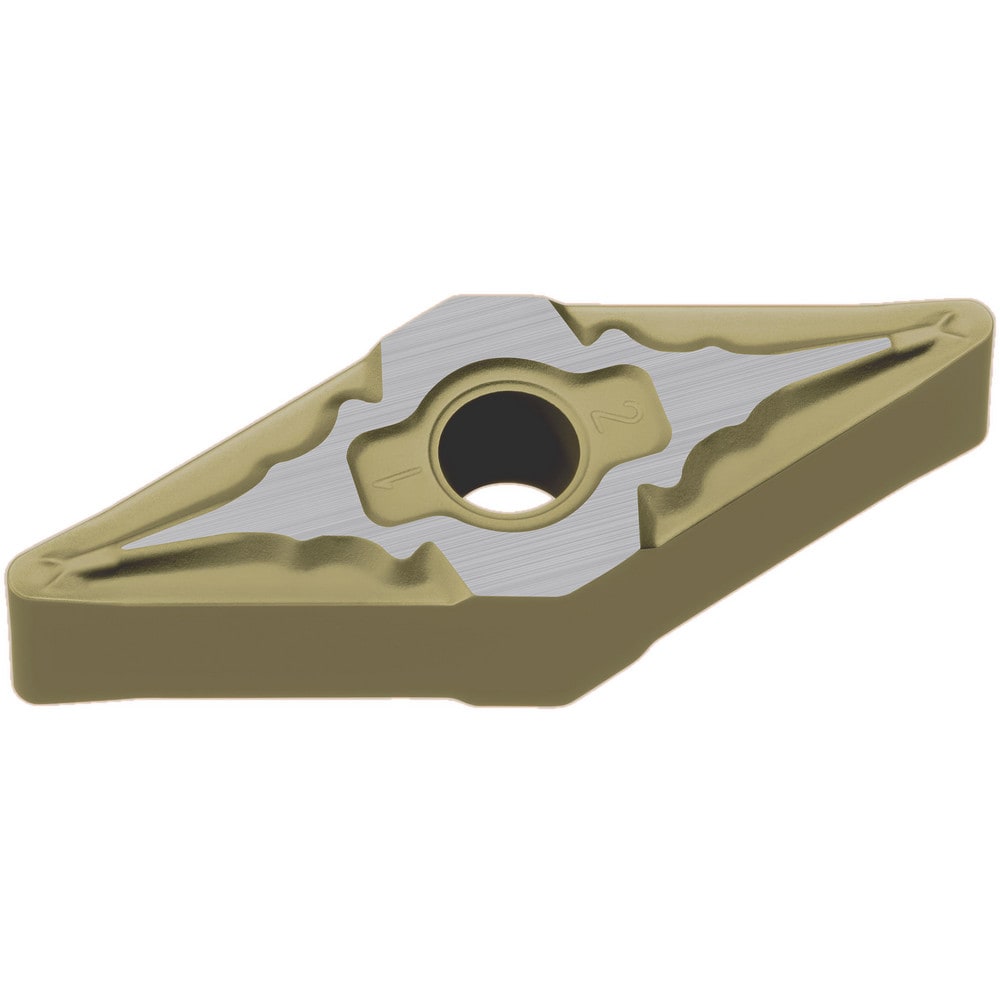

Turning Insert: VNMG332MP MC6125, Carbide
Item #: 06491443
Brand: Mitsubishi
Model #: 10636855
Product Specifications
| ANSI Insert Code | VNMG332 |
| ISO Insert Code | VNMG160408 |
| Relief Angle | 0 |
| Insert Style | VNMG |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Included Angle | 35 |
| Manufacturer Grade | MC6125 |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Medium Machining |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | V |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material Code | P |
| Chip Breaker | MP |
| ANSI Size Code | 332 |
| ISO Size Code | 160408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3 |
