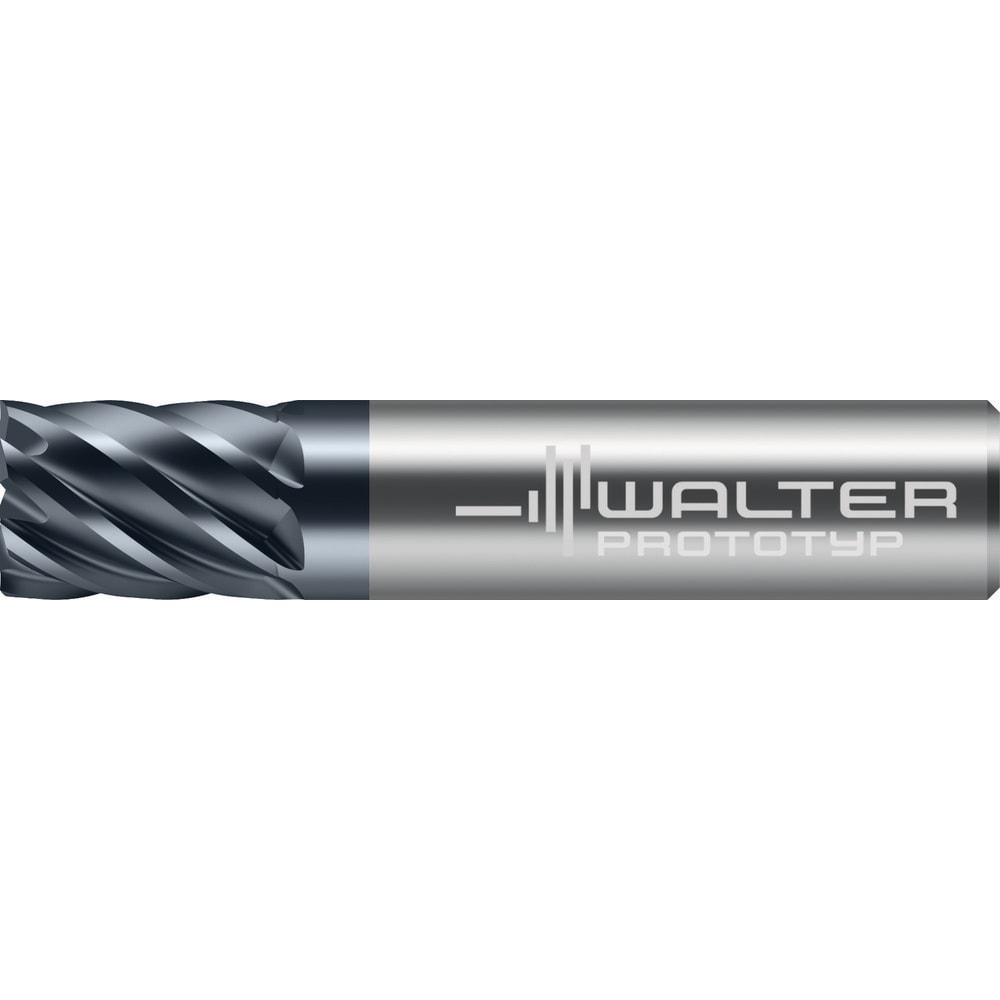

Square End Mill: 3/8" Dia, 1-1/4" LOC, 7 Flute, Solid Carbide
Item #: 06594972
Brand: Walter-Prototyp
Model #: 8417104
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750 |
| Mill Diameter (Inch) | 3/8 |
| Number Of Flutes | 7 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 1-1/4 |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 3 |
| Single Or Double End | Single |
| Coating/Finish Family | nACo |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 39 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Coating/Finish | nACo |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Solid Carbide |
| Reach Length (Decimal Inch) | 1.2500 |
| Reach Length (mm) | 31.75 |
| Shank Diameter Tolerance | h6 |
| Series | MA375 |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 23241614 |
