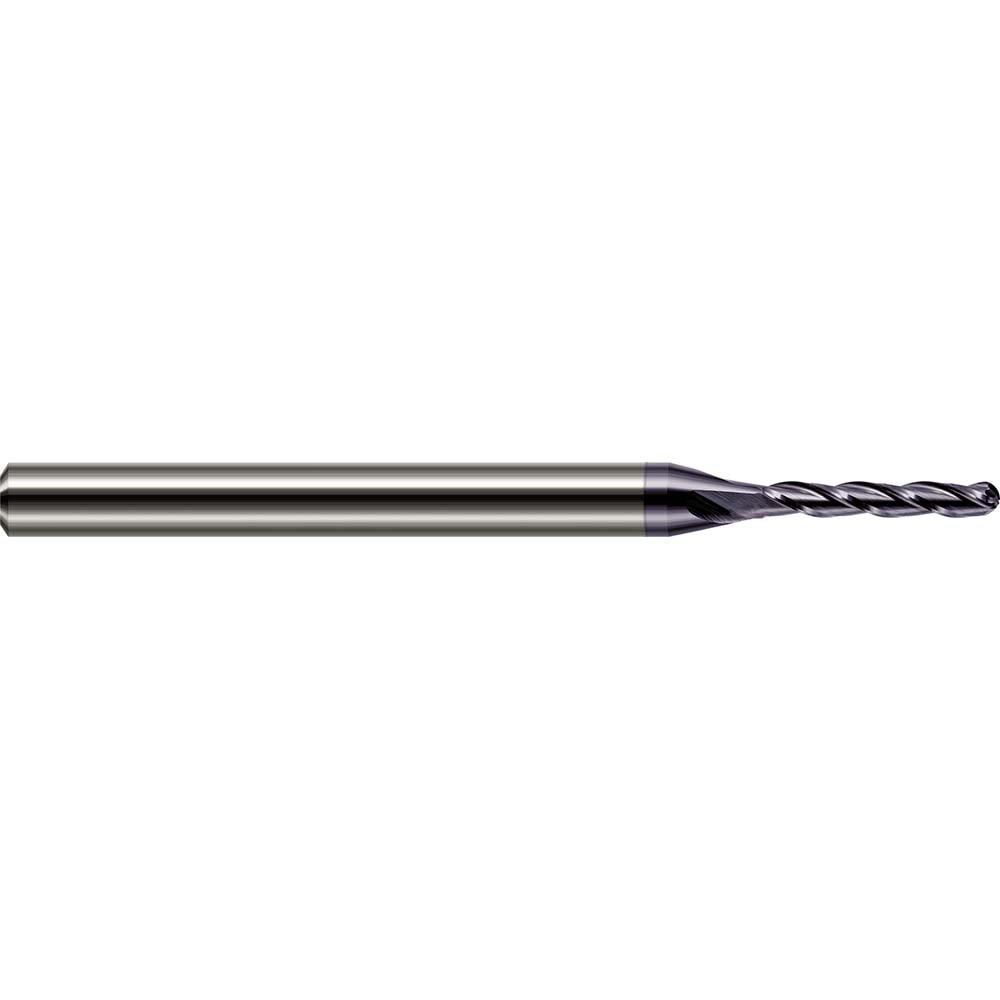

Ball End Mill: 0.0100" Dia, 0.0500" LOC, 4 Flute, Solid Carbide

Ball End Mill: 0.0100" Dia, 0.0500" LOC, 4 Flute, Solid Carbide


Item #: 06481782
Brand: Harvey Tool
Model #: 841010-C3

Product Specifications

Mill Diameter (Decimal Inch) 0.0100
Number Of Flutes 4
End Mill Material Solid Carbide
Coating/Finish AlTiN
Overall Length (Inch) 2-1/2
Shank Diameter (Inch) 1/8
Extended Reach No
Variable Helix Yes
Variable Index No
Helix Angle 20
Overall Length (Decimal Inch) 2.5000
Chipbreaker No
Undercutting No
Length Of Cut Range (Decimal Inch) 0.0500 - 0.1000
Length Type Long
Helix Style Variable
Material Removal Type Finishing
Shank Diameter (Decimal Inch) 0.1250
Nose Radius (Decimal Inch) 0.0050
Reach Length (Decimal Inch) 0.0500
Mill Diameter Tolerance +0.0005/-0.0005 in
Shank Diameter Tolerance h6
Primary Workpiece Material Hard Material
Primary Workpiece Material Code H
Secondary Workpiece Material Stainless Steel; Cast Iron; Steel
Secondary Workpiece Material Code P; K; M
Material Grade Carbide
Flute Direction Right Hand
Cutting Direction Right Hand
Series Miniature End Mills - Ball - Long Flute, Miniature End Mills
Flute Type Spiral
UNSPSC Code 27112803
Centercutting No
Coating Classification PVD
Single Or Double End Single
Shank Type Straight-Cylindrical
Pitch Normal
Coolant Through No
Length Of Cut (Decimal Inch - 4 Decimals) 0.0500
Manufacturers Catalog Number 841010-C3
System Of Measurement Decimal Inch
$56.03
