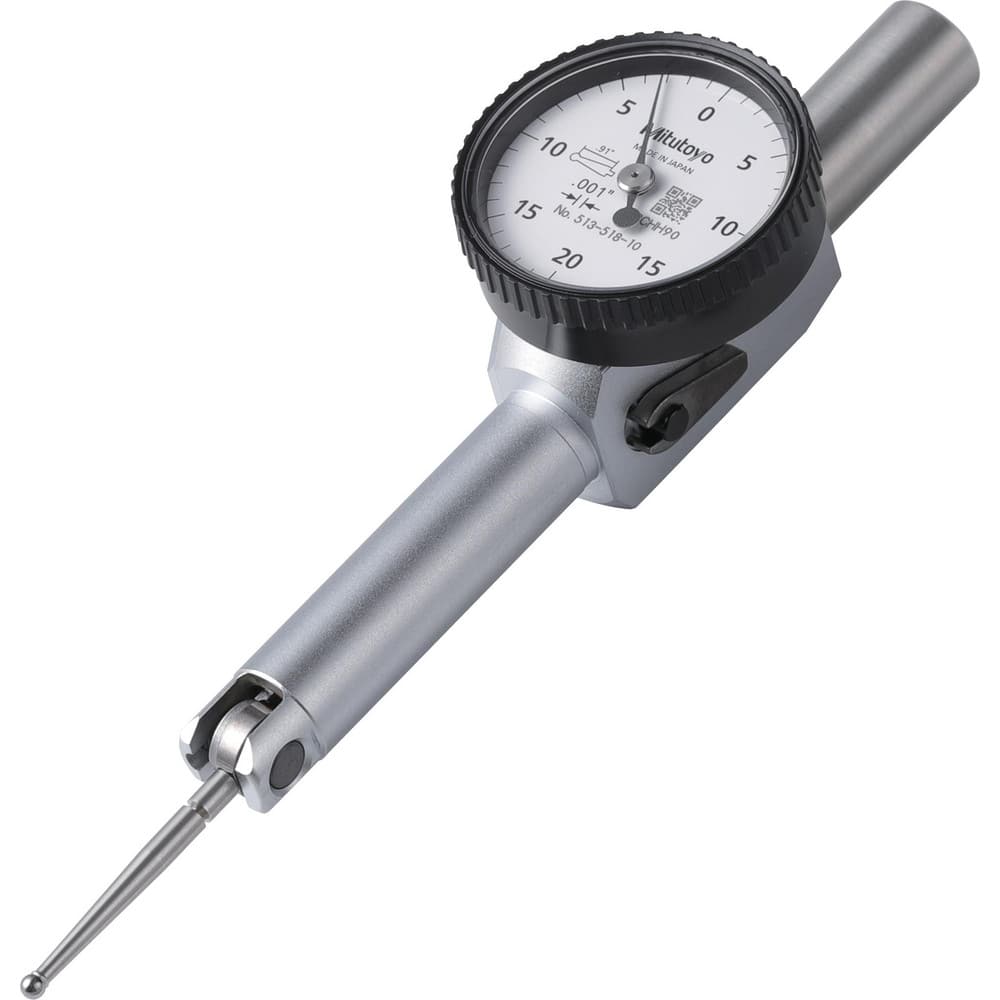

0 to 0.04″, 0.001000″ Graduation, Horizontal Dial Test Indicator 0-20-0, 33mm White Dial, 0.001000″ Accuracy
Item #: 13681903
Brand: Mitutoyo
Model #: 513-518-10E
Product Specifications
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Maximum Measurement (Decimal Inch) | 0.0400 |
| Dial Reading | 0-20-0 |
| Accuracy (Decimal Inch) | 0.001000 |
| Indicator Style | Horizontal |
| Bearing Type | Jeweled |
| Dial Diameter (mm) | 33.00 |
| Dial Color | White |
| Dial Graduation (Decimal Inch) | 0.001000 |
| Mount Type | Dovetail |
| Calibrated | No |
| Attachments | Yes |
| Number of Contact Points Included | 2 |
| Contact Point Swivel Angle | 220 ? |
| Features | Dust and Oil Proof; O-Ring Seal; Carbide-Tipped; Glare-Free Crystal; No-Clutch Structure; Automatic Reversal; High-Impact Resistance; Durable; Scratch-Resistant |
| Series | 513 |
| Ball Diameter (Decimal Inch) | 0.0790 |
| Style | Horizontal |
| Contents | Contact Point; Dial Indicator; Stem; Spanner |
| Manufacturer's Part Number | 513-118-1 |
