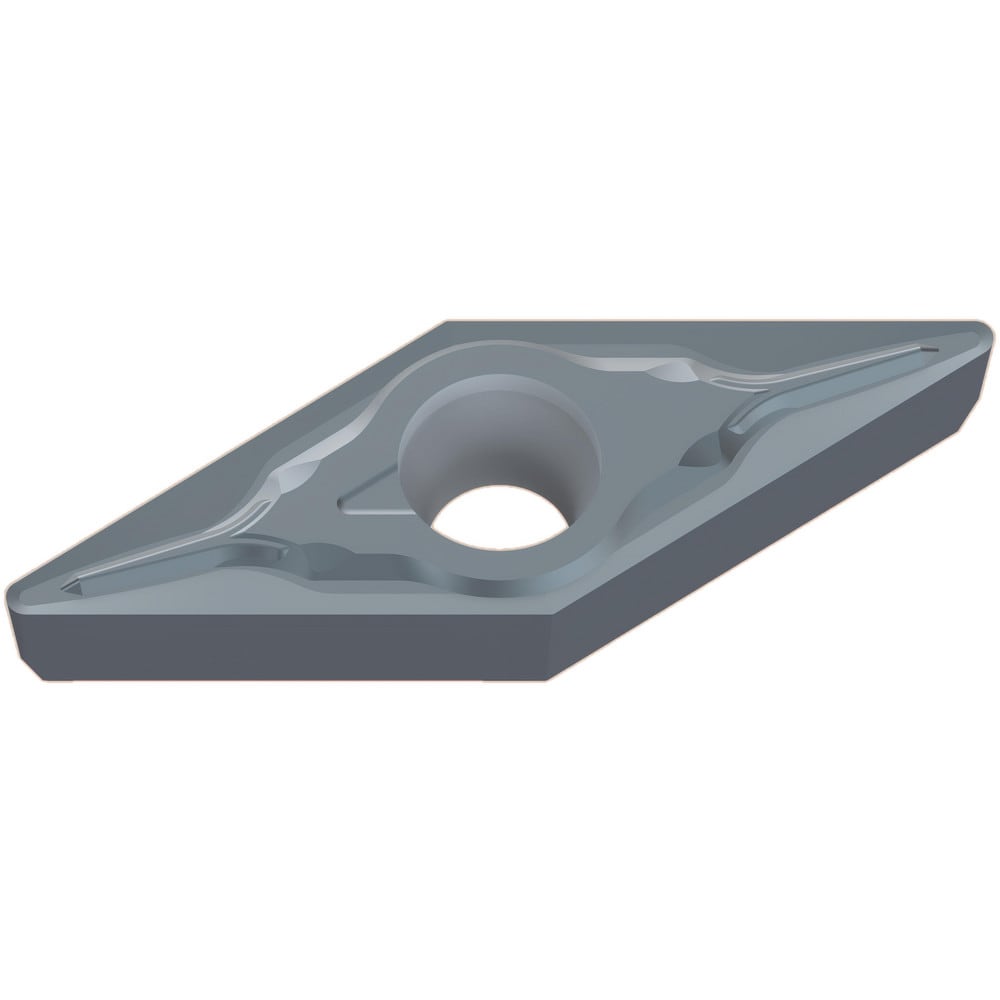

Turning Insert: VCGT2.520.2MLS MP9025, Carbide
Item #: 06674865
Brand: Mitsubishi
Model #: 10643037
Product Specifications
| ANSI Insert Code | VCGT2.520.2 |
| ISO Insert Code | VCGT |
| Relief Angle | 7 |
| Insert Style | VCGT |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Included Angle | 35 |
| Manufacturer Grade | MP9025 |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Inscribed Circle (Decimal Inch) | 0.3125 |
| Inscribed Circle (Inch) | 5/16 |
| Inscribed Circle (mm) | 7.94 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Light Machining; Finishing |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Clearance Code | C |
| Tolerance Code | G |
| Primary Workpiece Material Code | S |
| Chip Breaker | LS |
| ANSI Size Code | 2.520.2 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2.5 |
