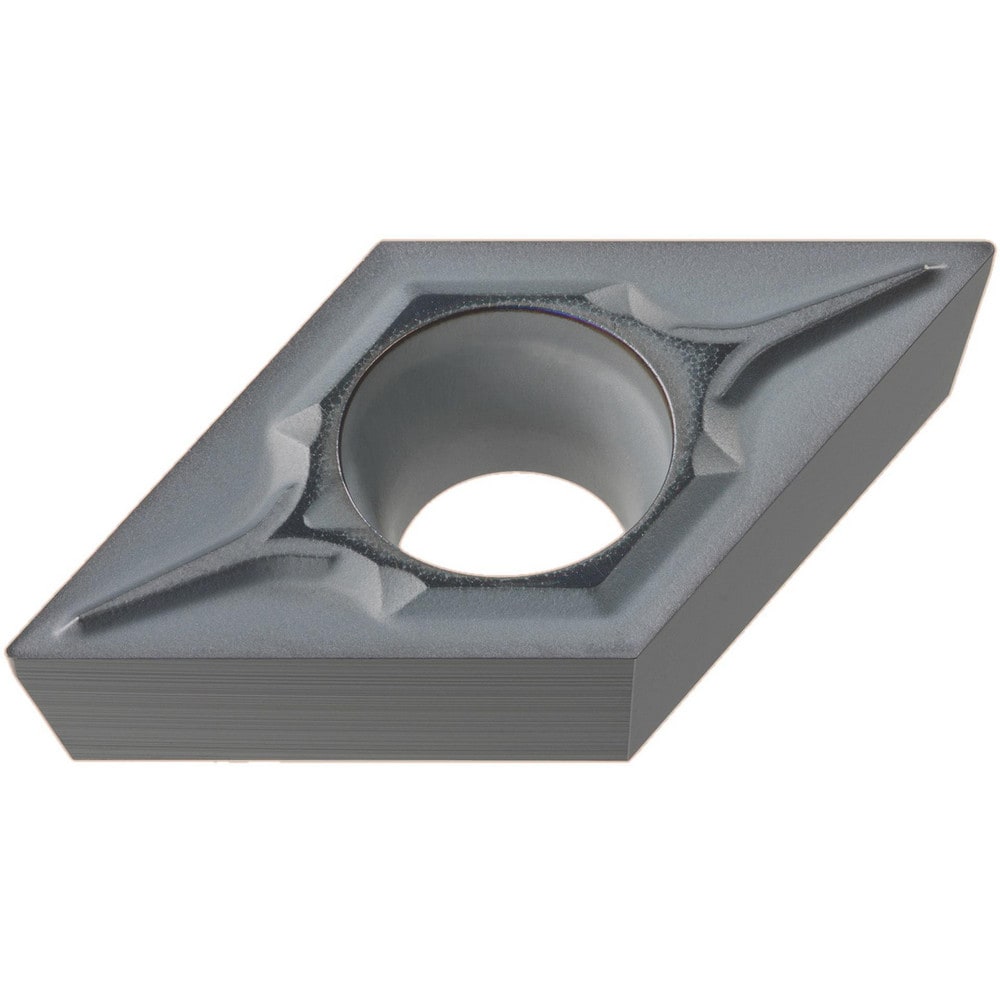

Turning Insert: DCGT21.50.5MLS MP9025, Carbide
Item #: 06675128
Brand: Mitsubishi
Model #: 10642955
Product Specifications
| ANSI Insert Code | DCGT21.50.5 |
| ISO Insert Code | DCGT |
| Relief Angle | 7 |
| Insert Style | DCGT |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 55 |
| Manufacturer Grade | MP9025 |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Light Machining; Finishing |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Clearance Code | C |
| Tolerance Code | G |
| Primary Workpiece Material Code | S |
| Chip Breaker | LS |
| ANSI Size Code | 21.50.5 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2 |
