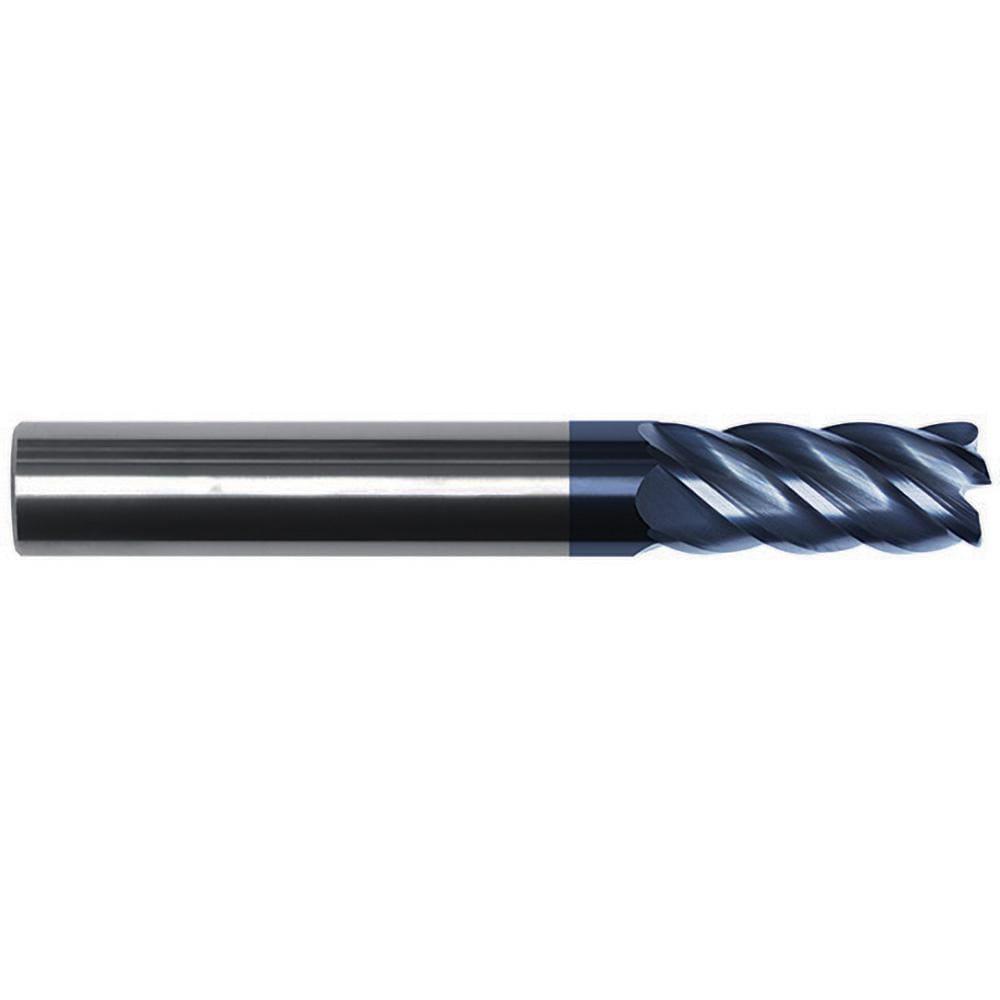

Corner Radius End Mill: 5/8" Dia, 3/4" LOC, 0.0625" Radius, 5 Flute, Solid Carbide
Item #: 06652952
Brand: Internal Tool
Model #: 136-1780
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 3/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0625 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Variable |
| Overall Length (Decimal Inch) | 3.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Length Type | Regular |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; K; M; N |
| Series | 136 |
| Coating Classification | PVD |
| For Use With. | End Mill Toolholders |
| Helix Style | High |
| Manufacturers Catalog Number | 136-1780 |
