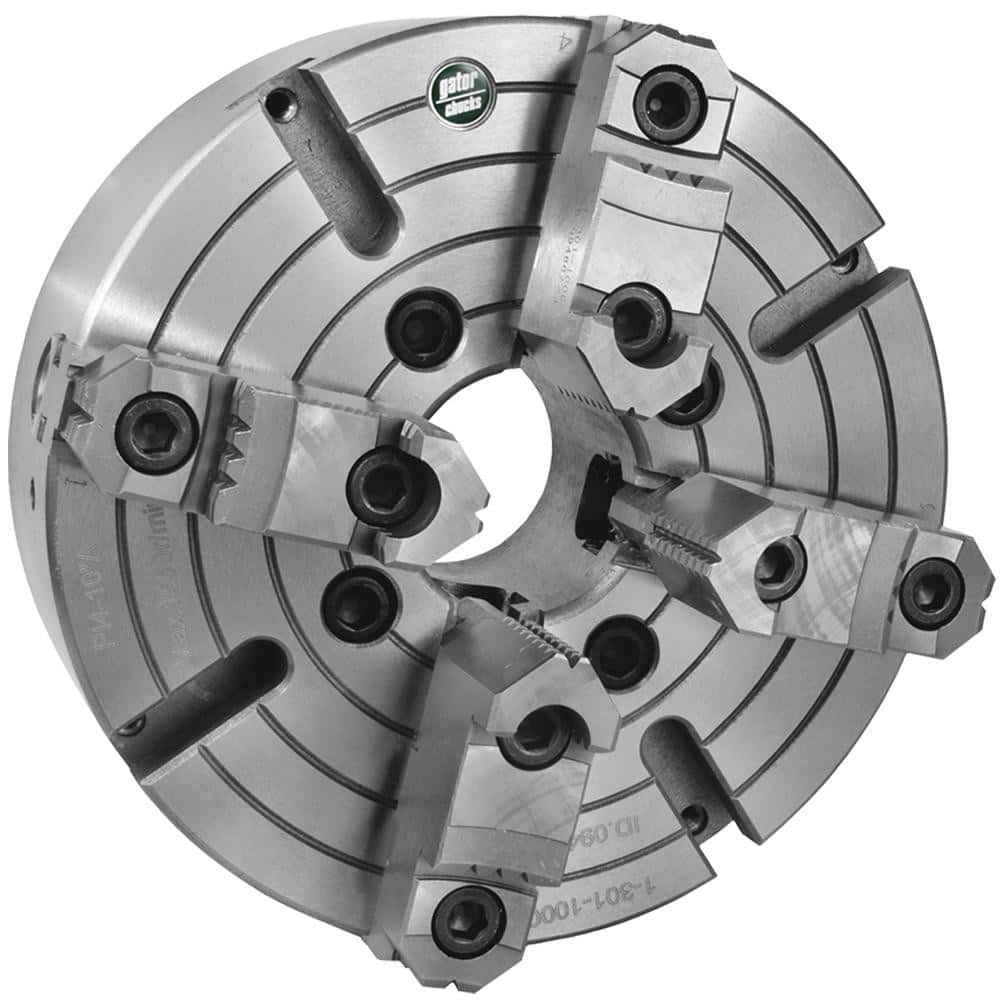

Independent Manual Lathe Chuck: 4-Jaw, 12″ Dia Two-Piece Jaws, Plain Back Mount, 1,200 Max RPM
Item #: 13541487
Brand: Gator Lathe Chucks
Model #: 1-301-1200
Product Specifications
| Chuck Type | Independent |
| Material | Semi-Steel; Cast Iron |
| Jaw Type | Two-Piece |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 3.1500 |
| Chuck Diameter (Decimal Inch) | 12.0000 |
| Chuck Diameter (Inch) | 12 |
| Minimum Jaw Capacity (Inch) | 0.5910 |
| Minimum Jaw Capacity (mm) | 0.59 |
| Maximum Jaw Capacity (mm) | 12.40 |
| Maximum Jaw Capacity (Inch) | 12.4000 |
| Jaw Height (Decimal Inch) | 2.3980 |
| Maximum Rpm | 1200 |
| Mount Type | Plain Back |
| TIR Repeatability (Decimal Inch) | 0.0020 |
| Number Of Jaws | 4 |
| Contents | (1) Set of Master & Hard Top Reversible Jaws; Adapter Mounting Bolts; Eye Bolts; Chuck Wrench; Hex Keys |
