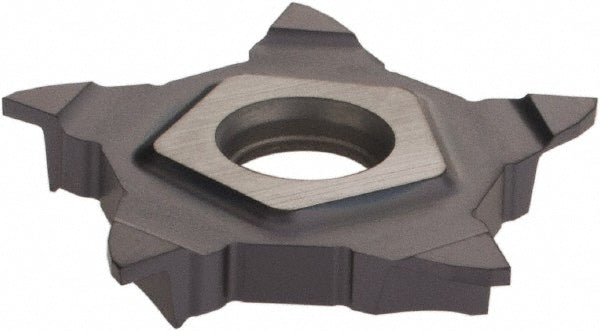

Grooving Insert: PENTA 24N080 NF IC908, Carbide
Item #: 81651473
Brand: Iscar
Model #: 6094304
Product Specifications
| Insert Style | PENTA |
| Cutting Width (Decimal Inch) | 0.0310 |
| Cutting Width (mm) | 0.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.0630 |
| Maximum Depth of Cut (mm) | 1.60 |
| Insert Material | Carbide |
| Manufacturer Grade | IC908 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Corner Radius (mm) | 0.10 |
| Measurement Type | Metric |
| Insert Size | 24N080 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Series | PentaCut |
| Coating Process | PVD |
| Iso Code | PENTA 24N080NF010LS IC908 |
| Manufacturers Catalog Number | 6094304 |
| UNSPSC Code | 23242105 |
| Chip Breaker | NF |
| Coating/Finish | TiAlN |
