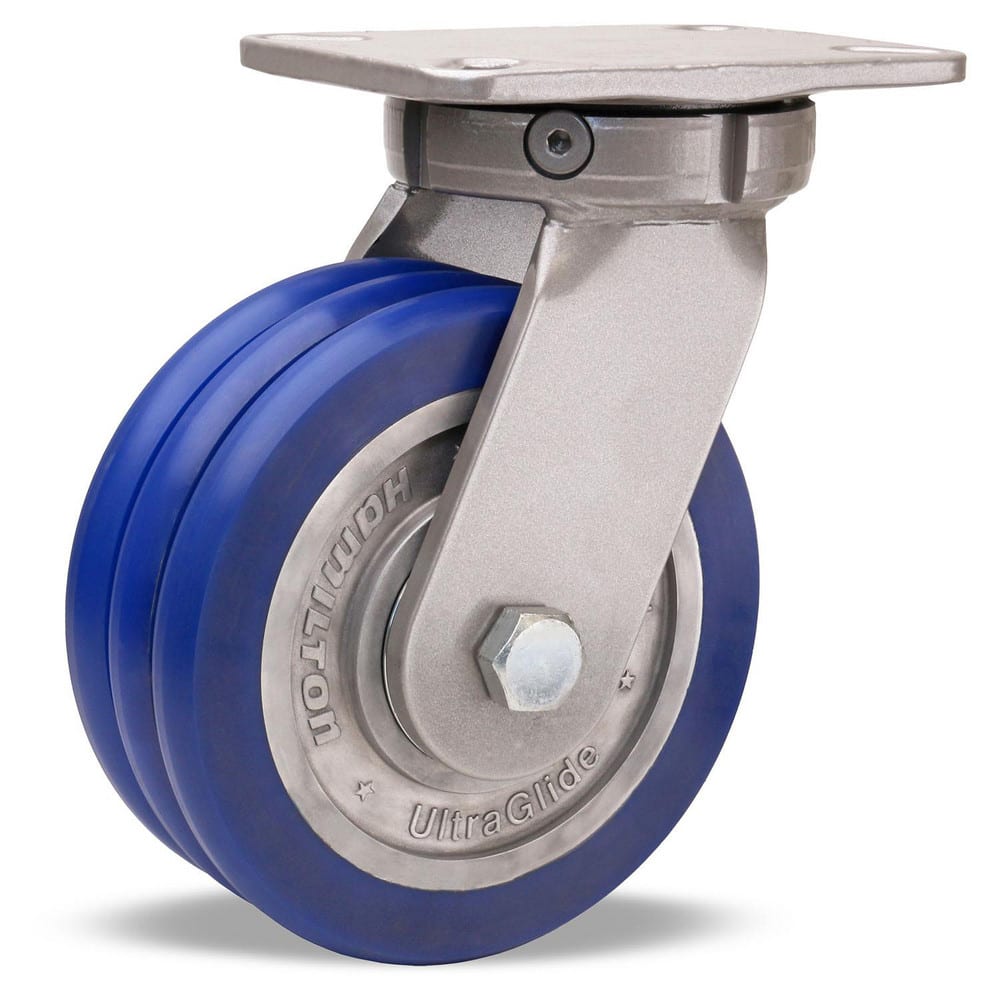

Swivel Top Plate Caster: Polyurethane on Aluminum, 8″ Wheel Dia, 2″ Wheel Width, 2,100 lb Capacity, 10-1/2″ OAH 7.25″ Plate Length, 5.25″ Plate Width, Non-Marking
Item #: 13525084
Brand: Hamilton
Model #: S-SEC-83SWC85
Product Specifications
| Wheel Type | Triple Wheel |
| Wheel Diameter (Inch) | 8 |
| Mount Type | Plate |
| Load Capacity | 2100 |
| Bearing Type | Sealed Precision Ball |
| Wheel Width | 2 in |
| Wheel Hardness | Soft |
| Wheel Width (Inch) | 2 |
| Style | Swivel |
| For Surface Type | Tile; Concrete; Steel |
| Frame Material | Forged Steel; Steel |
| Wheel Diameter | 8 in |
| Wheel Hardness Rating | 85A |
| Wheel Material | Polyurethane on Aluminum |
| Tread Shape | Donut |
| Swivel Construction | Kingpinless Swivel |
| Wheel Bearing Type | Ball |
| Wheel Bearing Material | Steel |
| Construction | Drop Forged |
| Wheel Color | Blue |
| Bearing Seal Type | Sealed |
| Attaching Bolt Size (Fractional Inch) | 1/2 |
| Plate Length (Inch) | 7.2500 |
| Inside Bolt Hole Spacing | 3-3/8 x 5-1/4 |
| Outside Bolt Hole Spacing | 4-1/8 - 6-1/8 |
| Overall Height (Inch) | 10-1/2 |
| Overall Height (Decimal Inch) | 10.5000 |
| Marking | No |
| Standards | ICWM |
| Number Of Wheels | 3 |
| Plate Width/Diameter (Decimal Inch) | 5.2500 |
| Finish Coating | Platinum Powder |
