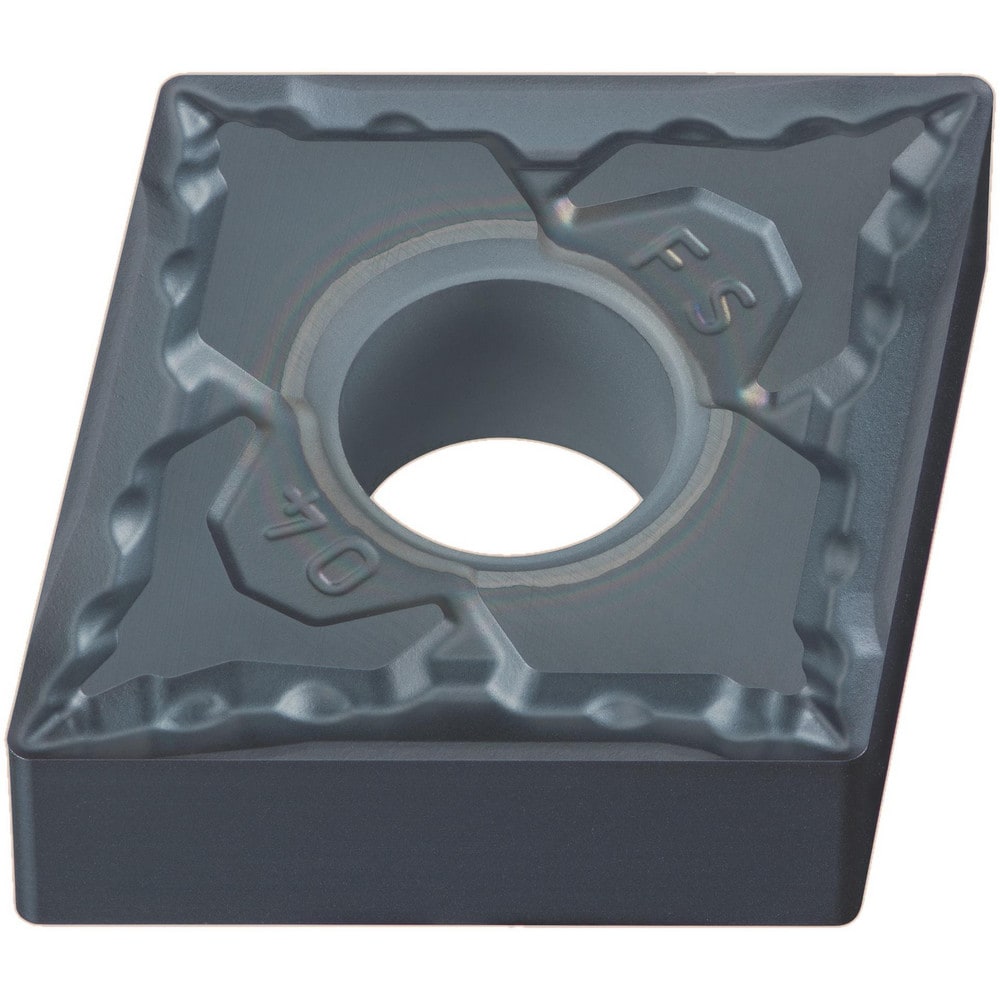

Turning Insert: CNGG430.2FS MP9025, Carbide

Turning Insert: CNGG430.2FS MP9025, Carbide


Item #: 06574149
Brand: Mitsubishi
Model #: 22817402

Product Specifications

ANSI Insert Code CNGG430.2
ISO Insert Code CNGG120401
Relief Angle 0
Insert Style CNGG
Corner Radius (mm) 0.10
Corner Radius (Decimal Inch) 0.0039
Included Angle 80
Manufacturer Grade MP9025
Coating/Finish PVD
Insert Hand Neutral
Insert Thickness (Inch) 3/16
Insert Thickness 4.76
Insert Thickness (Decimal Inch) 0.1875
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Inscribed Circle (mm) 12.70
Insert Material Carbide
Insert Shape C - Diamond (Rhombic) 80-Deg
Chip Breaker Operation Finishing
Grade Characteristics Special, Super Alloys (S) - High Wear-Resistance to High Toughness
Side Clearance Negative
Number Of Cutting Edges 4
Insert Shape Code C
Clearance Code N
Tolerance Code G
Primary Workpiece Material Code S
Chip Breaker FS
ANSI Size Code 430.2
ISO Size Code 120401
UNSPSC Code 23242105
Insert Size Code 4
$23.29
