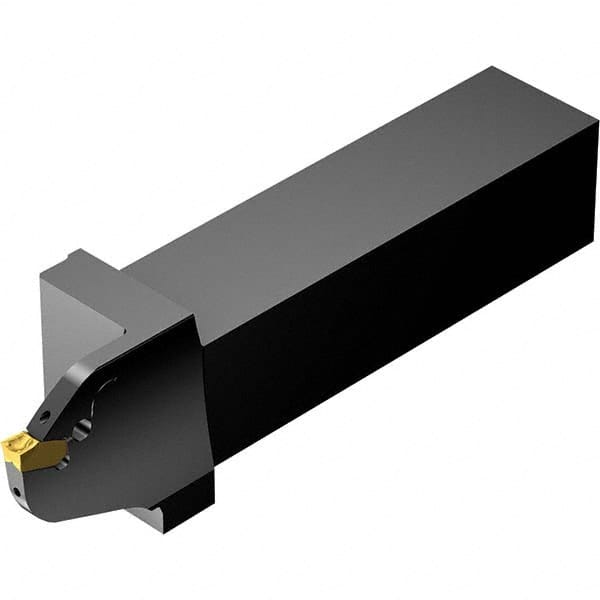

1″ Max Depth, 60 to 150mm Width, Internal Right Hand Face Grooving Toolholder 7″ OAL, 1-1/4 x 1-1/4″ Shank, Uses QFT-L-0800-08-TF Inserts, QFT Toolholder, Through Coolant, Series CoroCut QF
Item #: 13044771
Brand: Sandvik Coromant
Model #: 7602787
Product Specifications
Internal or External | Internal |
Toolholder Type | Face Grooving |
Hand of Holder | Right Hand |
Maximum Depth of Cut (Decimal Inch) | 1.0000 |
Minimum Groove Width (mm) | 60.00 |
Maximum Groove Width (mm) | 150.00 |
Toolholder Style | QFT |
Insert Holding Method | Clamp |
Insert Compatibility | QFT-L-0800-08-TF |
Shank Width/Diameter (Inch) | 1-1/4 |
Shank Height (Inch) | 1-1/4 |
Series | Coro Cut QF |
Overall Length (Inch) | 7 |
Back of Bar to Cutting Edge (Decimal Inch) | 7.0000 |
Head Height (Inch) | 1-1/4 |
Head Length (mm) | 41.35 |
Maximum Bore Depth (Decimal Inch) | 1.6280 |
Coolant Through | Yes |
