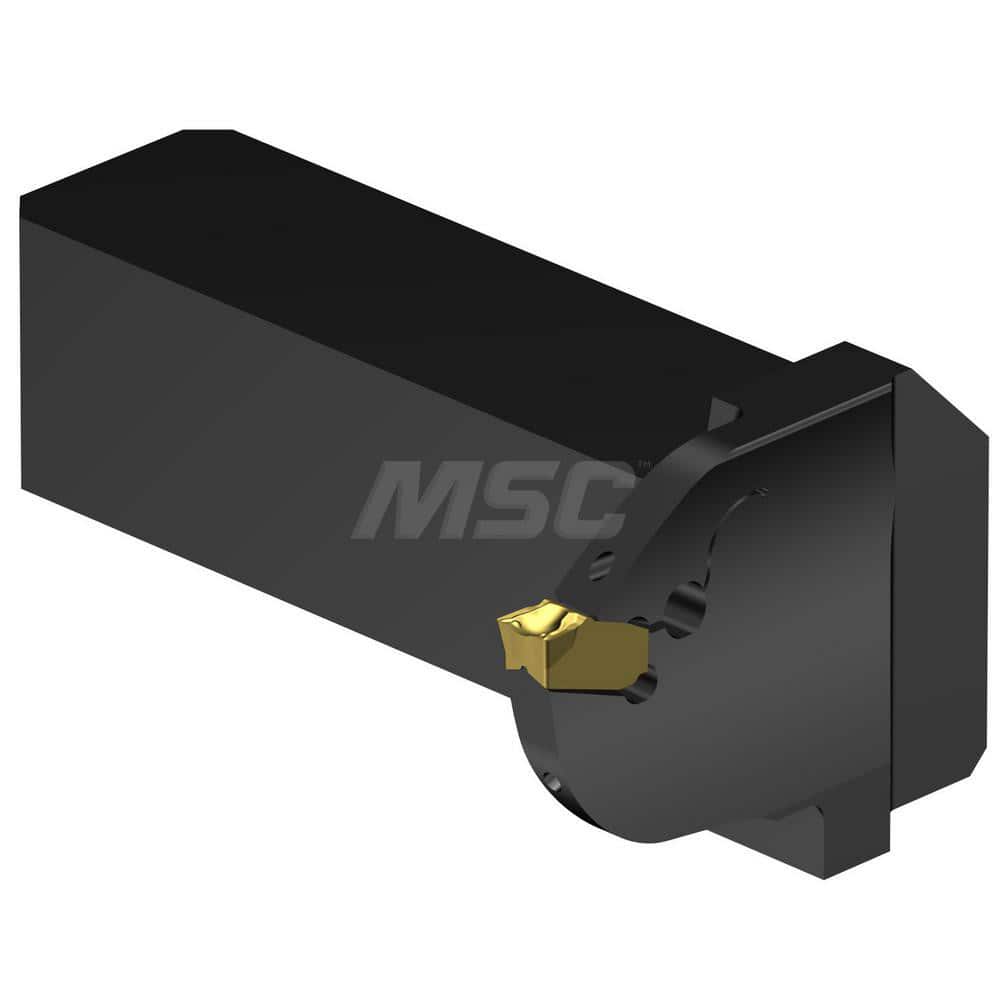

1″ Max Depth, 45 to 110mm Width, Internal Left Hand Face Grooving Toolholder 94mm OAL, 1 x 1″ Shank, Uses QFT-K-0600-04-TF Inserts, QFT Toolholder, Through Coolant, Series CoroCut QF
Item #: 13044672
Brand: Sandvik Coromant
Model #: 7602760
Product Specifications
| Internal or External | Internal |
| Toolholder Type | Face Grooving |
| Insert Seat Size | K |
| Hand of Holder | Left Hand |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Minimum Groove Width (mm) | 45.00 |
| Maximum Groove Width (mm) | 110.00 |
| Toolholder Style | QFT |
| Insert Holding Method | Clamp |
| Insert Compatibility | QFT-K-0600-04-TF |
| Compatible Insert Size Code | QFT-K-0600 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Coro Cut QF |
| Overall Length (mm) | 94.00 |
| Multi-use Tool | No |
| Cutting Tool Application | Facing |
| Maximum Overhang (Inch) | 0.3149 |
| Back of Bar to Cutting Edge (mm) | 94.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.7007 |
| Head Height (Decimal Inch) | 1.0000 |
| Head Height (Inch) | 1 |
| Head Length (mm) | 8.00 |
| Maximum Bore Depth (Decimal Inch) | 0.3150 |
| Coolant Through | Yes |
