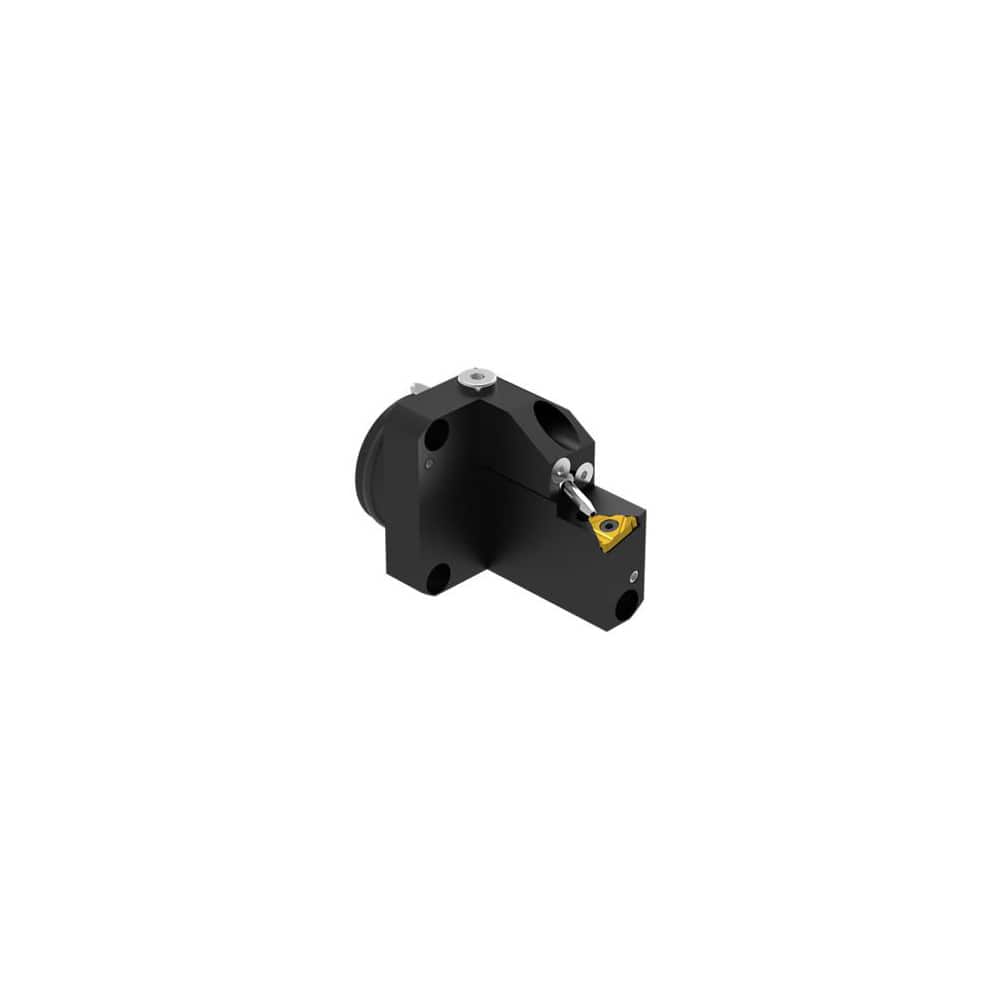

Indexable Threading Toolholder: External, Right Hand, 42 x 42 mm Shank Steel, 0.375″ Insert Inscribed Circle, Series TS-ER16
Item #: 11969334
Brand: WNT
Model #: 7295708005
Product Specifications
| Thread Type | External |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 16 ER.. |
| Shank Width/Diameter (mm) | 42.00 |
| Toolholder Style | TS |
| Coolant Entry Style Code | 2 - Radial Entry |
| Insert Holding Method | Screw |
| Shank Height (mm) | 42.00 |
| Shank Length (mm) | 15.00 |
| Overall Length (mm) | 116.00 |
| Series | TS-ER16 |
| Multi-use Tool | No |
| Cutting Tool Application | Threading |
| Head Length (mm) | 50.50 |
| Adjustable Overhang | No |
| Back of Bar to Cutting Edge (mm) | 46.00 |
| Center to Cutting Edge (mm) | 4.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
